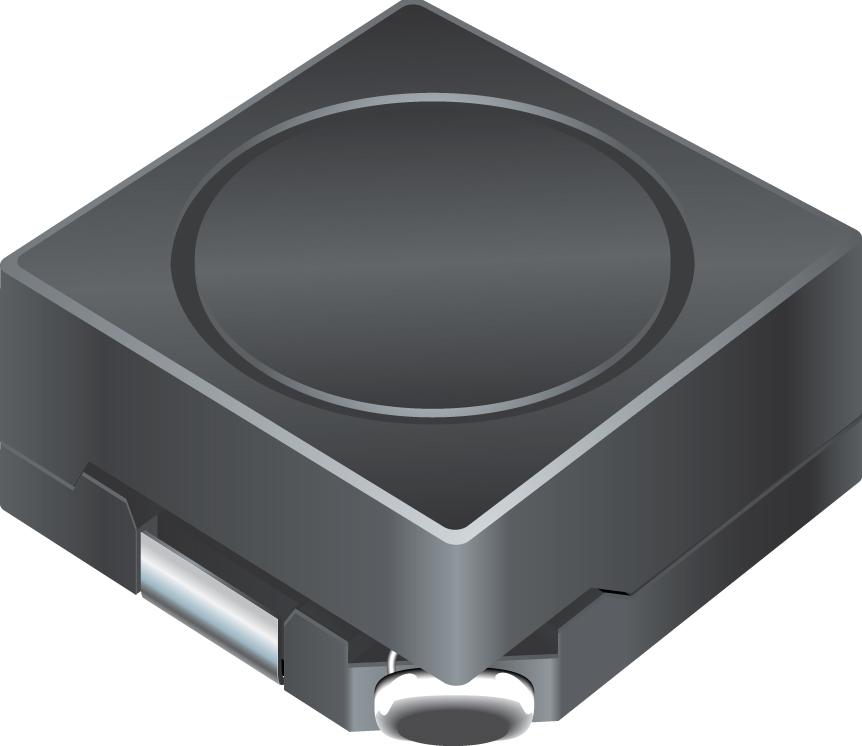

BOURNS - SRR0603-330KL - Power Inductor (SMD), 33 µH, 600 mA, Shielded, 830 mA, SRR0603, 6.5mm x 6.5mm x 3.3mm
- Inductance: 33µH
- RMS Current (Irms): 600mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 830mA
- Product Range: SRR0603 Series
- Power Inductor Case: 6.5mm x 6.5mm x 3.3mm
- DC Resistance Max: 0.43ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2018)
- No. of Pins: 2Pins
- Q Factor: 15
- Q Test Frequency: 2.52MHz
- Self Resonant Frequency Min: 16MHz
