Description

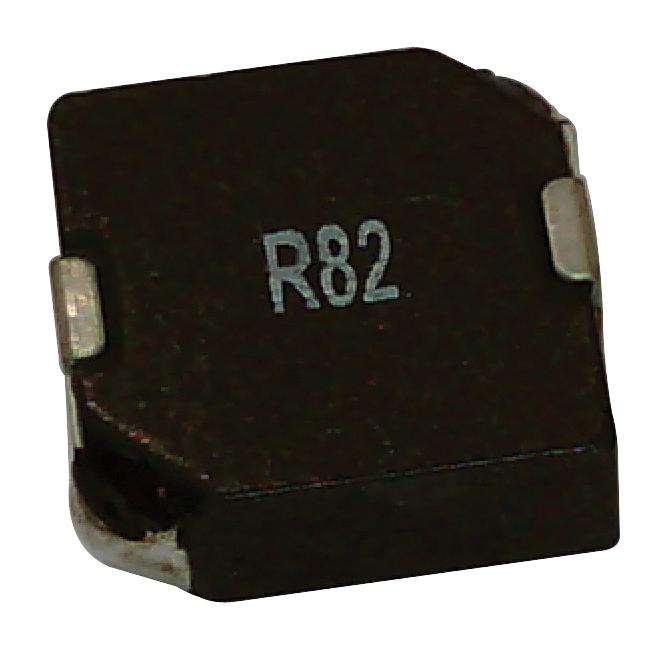

BOURNS - SRP7030-R82M - Power Inductor (SMD), 820 nH, 12 A, Shielded, 14 A, SRP7030
- Inductance: 820nH
- RMS Current (Irms): 12A
- Inductor Construction: Shielded
- Saturation Current (Isat): 14A
- Product Range: SRP7030 Series
- Power Inductor Case: 7.6mm x 6.5mm x 3.2mm
- DC Resistance Max: 0.0066ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2018)
