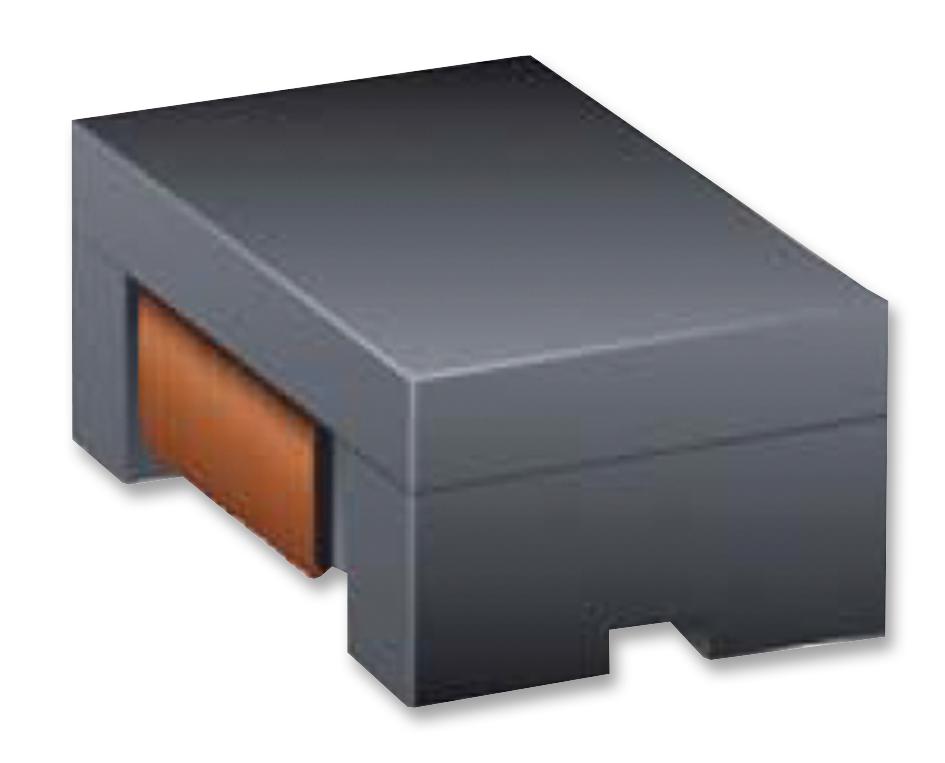

BOURNS - SRF4532-101Y - Inductor, Chip, Common Mode, 100 µH, SRF4532 Series, 5 kohm, 200 mA, 4.5mm x 3.2mm x 2.8mm
- Rated Current: 200mA
- Inductance: 100µH
- Product Range: SRF4532 Series
- Impedance: 5kohm
- Common Mode Filter Case: 4.5mm x 3.2mm x 2.8mm
- Automotive Qualification Standard: -
- SVHC: No SVHC (07-Jul-2017)
- Core Material: Ferrite
- DC Current Max: 200mA
- DC Current Rating: 200mA
- DC Resistance Max: 8.9ohm
- Filter Terminals: SMD
- Impedance Typ: 5000ohm
- Inductance Tolerance: -30% to +50%
- Insulation Resistance: 10Mohm
- Voltage Rating: 50V
- Voltage Rating V DC: 50V
