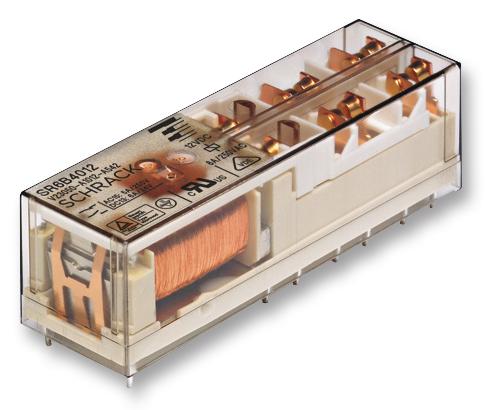

TE CONNECTIVITY - 8-1415537-0 - Safety Relay, 24 VDC, 4PST-NO, DPST-NC, SR6, Through Hole, 8 A, Solder
- Coil Voltage: 24VDC
- Contact Configuration: 4PST-NO, DPST-NC
- Product Range: SR6 Series
- Relay Mounting: Through Hole
- Contact Current: 8A
- Relay Terminals: Solder
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: -
- Contact Material: Silver Tin Oxide
- IP Rating: -
- SVHC: No SVHC (15-Jan-2018)
- Approvals & Standards: VDE
- Coil Resistance: 720ohm
- Coil Voltage VAC Nom: 24V
- Coil Voltage VDC Nom: 24V
- Contact Current AC Max: 8A
- Contact Current Max: 8A
- Contact Voltage AC Max: 400V
- DC Coil Power: 800mW
- External Depth: 16.5mm
- External Height: 16.5mm
- External Length / Height: 16.5mm
- External Width: 55mm
