Description

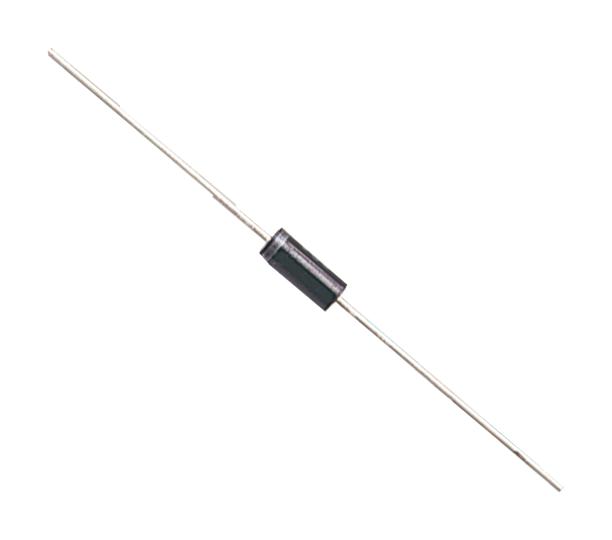

TAIWAN SEMICONDUCTOR - SR504 - Schottky Rectifier, 40 V, 5 A, Single, DO-201AD, 2 Pins, 550 mV
- Repetitive Reverse Voltage Vrrm Max: 40V
- Forward Current If(AV): 5A
- Diode Configuration: Single
- Diode Case Style: DO-201AD
- No. of Pins: 2Pins
- Forward Voltage VF Max: 550mV
- Forward Surge Current Ifsm Max: 150A
- Operating Temperature Max: 125°C
- Product Range: SR504 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Current If @ Vf: 5A
- Current Ifsm: 150A
- Device Marking: SR504
- Diode Type: Schottky
- External Diameter: 5.8mm
- External Length / Height: 9.5mm
- Forward Current If Max: 5A
- Forward Voltage: 550mV
- Junction Temperature Tj Max: 125°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +125°C
- Semiconductor Technology: Si
- Termination Type: Axial Leaded
