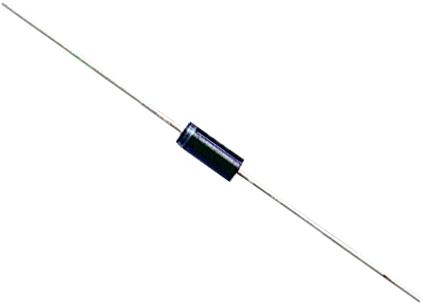

TAIWAN SEMICONDUCTOR - SR106 - Schottky Rectifier, 60 V, 1 A, Single, DO-41 (DO-204AL), 2 Pins, 700 mV
- Repetitive Reverse Voltage Vrrm Max: 60V
- Forward Current If(AV): 1A
- Diode Configuration: Single
- Diode Case Style: DO-41 (DO-204AL)
- No. of Pins: 2Pins
- Forward Voltage VF Max: 700mV
- Forward Surge Current Ifsm Max: 60A
- Operating Temperature Max: 150°C
- Product Range: SR106 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Current If @ Vf: 1A
- Current Ifsm: 40A
- Device Marking: SR106
- Diode Type: Schottky
- External Diameter: 2.7mm
- External Length / Height: 5.2mm
- Forward Current If Max: 1A
- Forward Voltage: 700mV
- Junction Temperature Tj Max: 150°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Semiconductor Technology: Si
- Termination Type: Axial Leaded
