Description

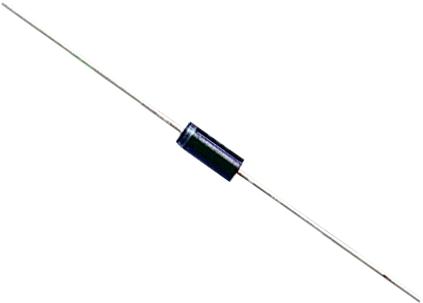

TAIWAN SEMICONDUCTOR - SR104 - Small Signal Schottky Diode, Single, 40 V, 1 A, 550 mV, 60 A, 125 °C
- Diode Configuration: Single
- Repetitive Reverse Voltage Vrrm Max: 40V
- Forward Current If(AV): 1A
- Forward Voltage VF Max: 550mV
- Forward Surge Current Ifsm Max: 60A
- Operating Temperature Max: 125°C
- Diode Case Style: DO-41 (DO-204AL)
- No. of Pins: 2Pins
- Product Range: SR104 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Current If @ Vf: 1A
- Current Ifsm: 40A
- Device Marking: SR104
- Diode Type: Schottky
- External Diameter: 2.7mm
- External Length / Height: 5.2mm
- Forward Current If Max: 1A
- Forward Voltage: 550mV
- Junction Temperature Tj Max: 125°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +125°C
- Termination Type: Axial Leaded
