Description

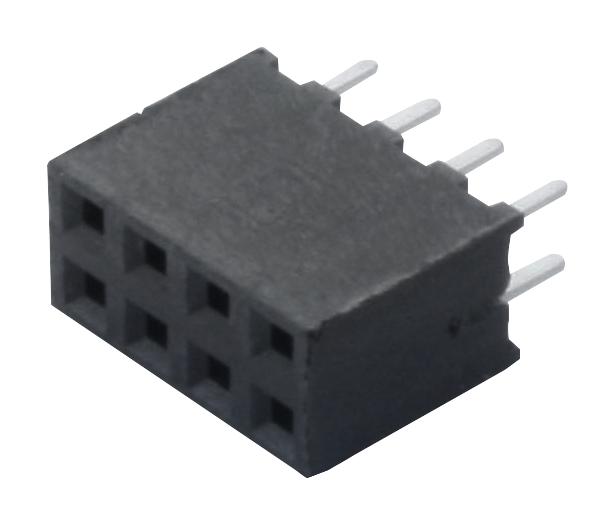

SAMTEC - SQW-104-01-L-D - PCB Receptacle, Board-to-Board, Wire-to-Board, 2 mm, 2 Rows, 8 Contacts, Through Hole Mount
- Pitch Spacing: 2mm
- No. of Contacts: 8Contacts
- Gender: Receptacle
- Product Range: SQW Series
- Contact Termination Type: Through Hole
- No. of Rows: 2Rows
- Contact Plating: Gold Plated Contacts
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (15-Jan-2018)
- Colour: Black
- Contact Resistance: 10mohm
- Contact Termination: Through Hole Vertical
- Lead Spacing: 2mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Row Pitch: 2mm
- Termination Method: Solder
- Voltage Rating VAC: 500V
