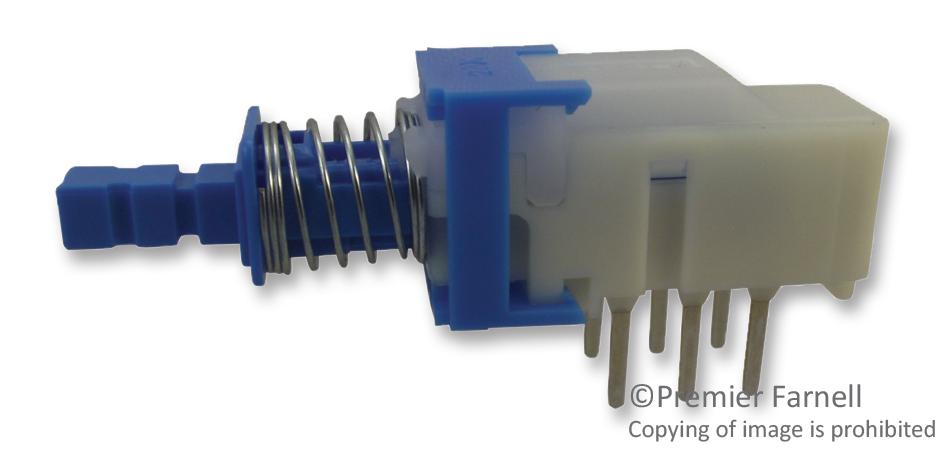

ALPS ALPINE - SPUN190900 - Pushbutton Switch, SPUN, DPDT, Momentary, Square
- Switch Operation: Momentary
- Contact Configuration: DPDT
- Contact Voltage AC Nom: -
- Contact Voltage DC Nom: 30V
- Contact Current Max: 100mA
- Switch Terminals: PC Pin
- Product Range: SPUN Series
- SVHC: No SVHC (20-Jun-2016)
- Actuation Type: Square
- Body Depth: 24mm
- Body Width: 10mm
- Contact Current @ Contact Voltage DC Min: 50µA
- Contact Current DC Max: 100mA
- Contact Resistance Max: 20mohm
- Contact Voltage DC Min: 3VDC
- Contact Voltage VDC: 30V
- External Depth: 42mm
- External Length / Height: 13mm
- Illumination Colour: Non-illuminated
- No. of Electrical Operations: 10000
- No. of Mechanical Operations: 30000
- Operating Force: 2N
- Operating Force Max: 3N
- Operating Force Min: 1N
- Operating Temperature Max: 40°C
- Operating Temperature Min: -20°C
- Pushbutton Actuator Style: Square
- Pushbutton Switch Type: Standard
- Switch Mounting: Through Hole
- Travel: 2.5mm
