Description

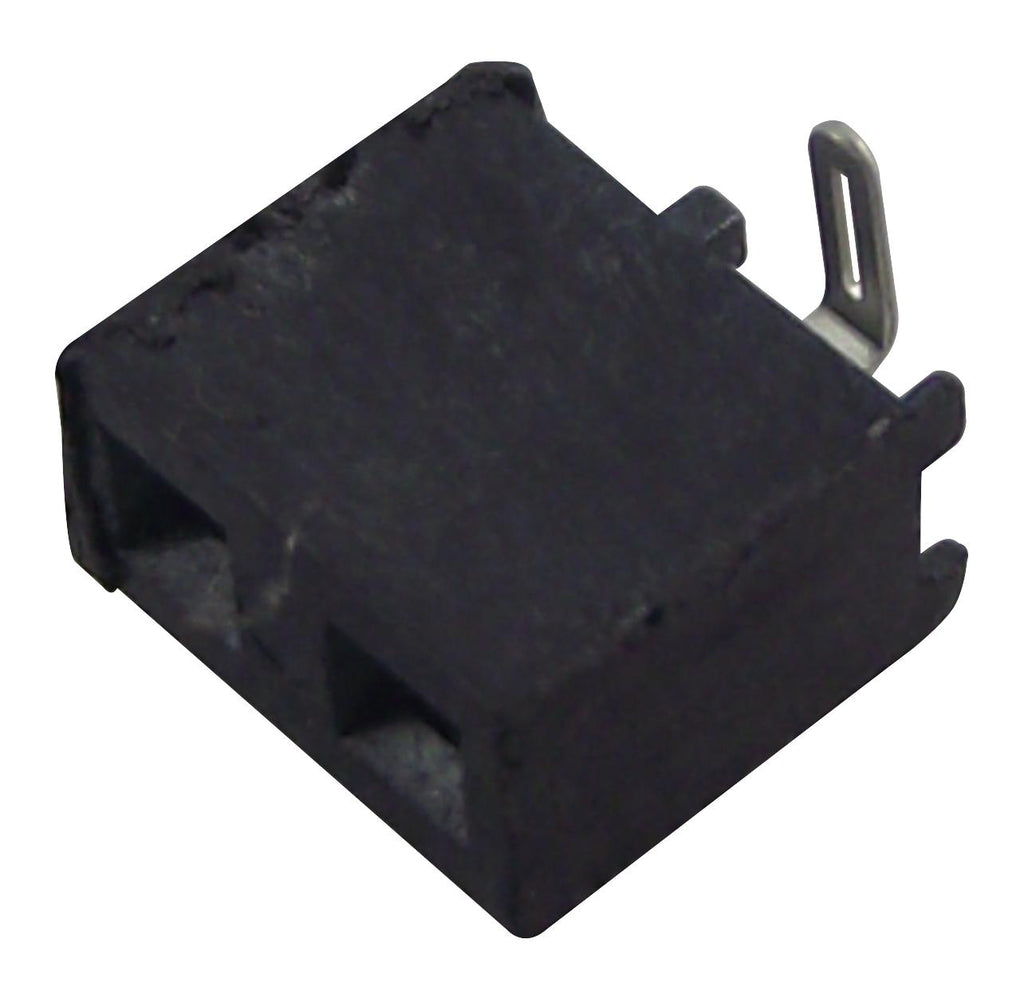

SAMTEC - SMM-102-02-S-S - PCB Receptacle, Board-to-Board, Wire-to-Board, 2 mm, 1 Rows, 2 Contacts, Surface Mount
- Pitch Spacing: 2mm
- No. of Contacts: 2Contacts
- Gender: Receptacle
- Product Range: SMM Series
- Contact Termination Type: Surface Mount
- No. of Rows: 1Rows
- Contact Plating: Gold Plated Contacts
- Contact Material: Beryllium Copper
- SVHC: No SVHC (15-Jan-2018)
- Colour: Black
- Contact Resistance: 10mohm
- Contact Termination: Surface Mount Vertical
- Current Rating: 3A
- Lead Spacing: 2mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Termination Method: Solder
