Description

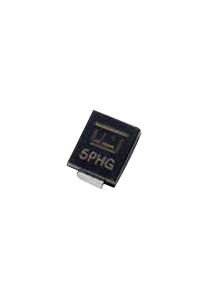

LITTELFUSE - SMDJ7.5CA - TVS Diode, TRANSZORB SMCJ, Bidirectional, 7.5 V, 12.9 V, DO-214AB (SMC), 2 Pins
- Product Range: TRANSZORB SMCJ Series
- TVS Polarity: Bidirectional
- Reverse Stand-Off Voltage Vrwm: 7.5V
- Clamping Voltage Vc Max: 12.9V
- Diode Case Style: DO-214AB
- No. of Pins: 2Pins
- Breakdown Voltage Min: 8.33V
- Breakdown Voltage Max: 9.21V
- Peak Pulse Power Dissipation: 3kW
- Automotive Qualification Standard: -
- Breakdown Voltage Range: 8.33V to 9.21V
- Peak Pulse Current Ippm: 232.6A
- Power Dissipation Pd: 3kW
