Description

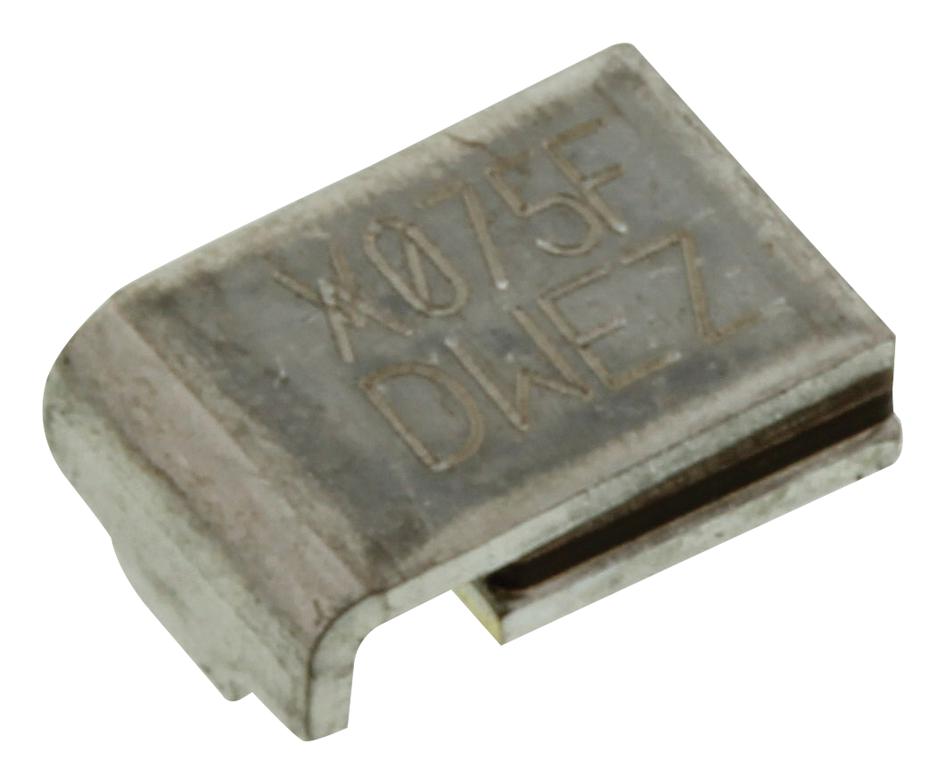

LITTELFUSE - SMD075F-2 - Resettable Fuse, PPTC, 2920 (7351 Metric), PolySwitch, 30 VDC, 750 mA, 1.5 A, 0.3 s
- Thermistor Mounting: SMD
- Product Range: PolySwitch Series
- Holding Current: 750mA
- Tripping Current: 1.5A
- Voltage Rating: 30VDC
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jun-2015)
- Approval Bodies: CSA, TUV
- Approval Category: UL Recognised
- Breaking Capacity Current AC: 40A
- Carrying Current Max: 40A
- External Depth: 3.2mm
- External Length / Height: 7.98mm
- External Width: 5.44mm
- Holding Current Max Ih: 0.75A
- Initial Resistance Max: 1ohm
- Initial Resistance Min: 0.35ohm
- Operating Voltage: 30V
- PTC Fuse Case Style: SMD
- Surface Tripped Temperature Max: 125°C
- Tab Blade Thickness: 0.56mm
- Tab Width: 2.41mm
- Termination Type: Surface Mount Device
- Thermistor Type: PTC Resettable Fuse
