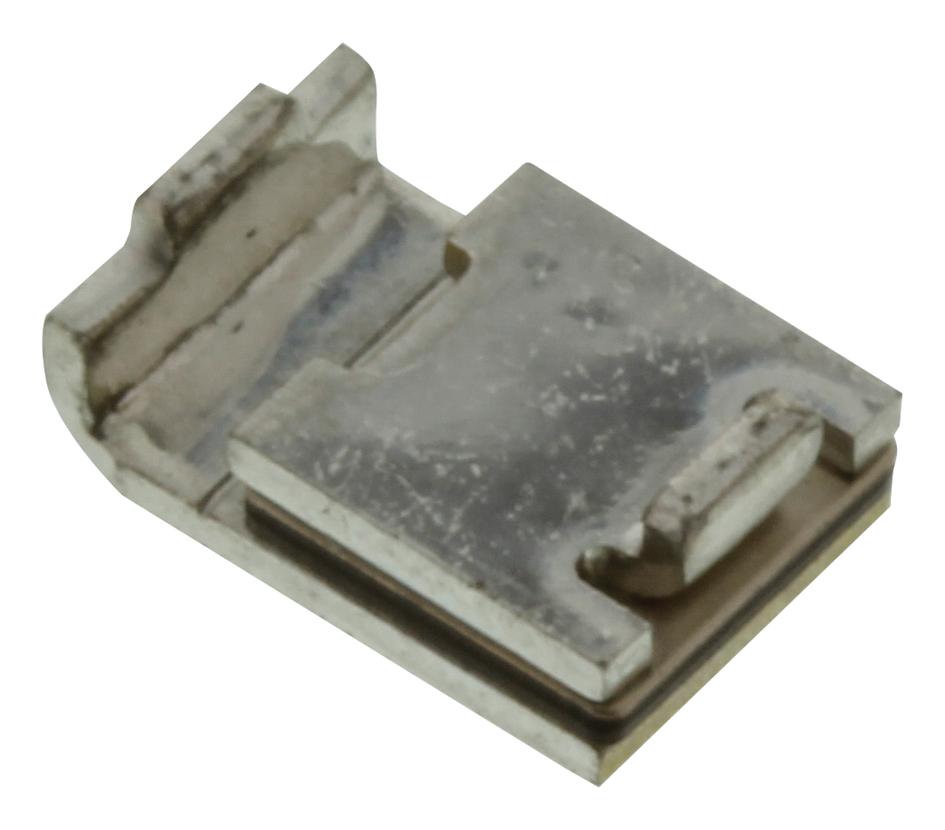

LITTELFUSE - SMD050F-2 - Resettable Fuse, PPTC, 2920 (7351 Metric), PolySwitch, 60 VDC, 500 mA, 1 A, 4 s
- Thermistor Mounting: SMD
- Product Range: PolySwitch Series
- Holding Current: 500mA
- Tripping Current: 1A
- Voltage Rating: 60VDC
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jun-2015)
- Approval Bodies: CSA, TUV
- Approval Category: UL Recognised
- Breaking Capacity Current AC: 10A
- Carrying Current Max: 10A
- External Depth: 3.2mm
- External Length / Height: 7.98mm
- External Width: 5.44mm
- Height: 7.98mm
- Holding Current Max Ih: 0.5A
- Initial Resistance Max: 1.4ohm
- Initial Resistance Min: 0.35ohm
- Operating Voltage: 60V
- PTC Fuse Case Style: SMD
- Surface Tripped Temperature Max: 125°C
- Tab Blade Thickness: 0.2mm
- Tab Width: 2.41mm
- Termination Type: Surface Mount Device
- Thermistor Type: PTC Resettable Fuse
