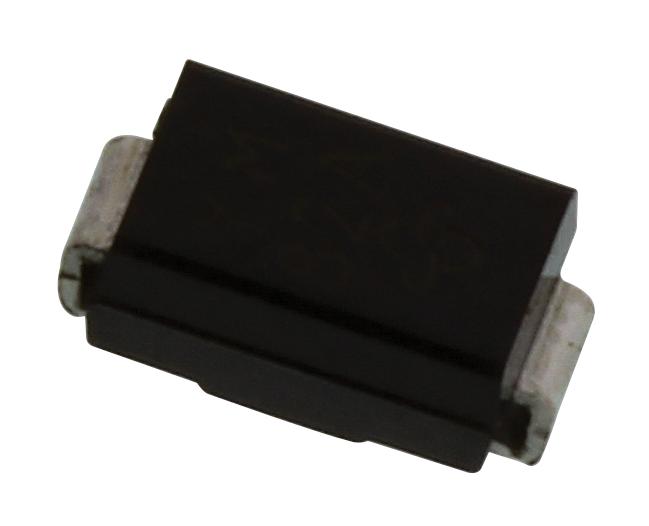

SMAJ33CA-e3/61 Diode, TVs, 400W, 33V, BIDIR, Sma Vishay

VISHAYSKU: SMAJ33CA-E3/61 Order code: 1698861

Price:
Sale price€0,61

Tax included Shipping calculated at checkout

Stock:
In stock (6259 units), ready to be shipped

Documents et téléchargements

Description

VISHAY - SMAJ33CA-E3/61 - TVS Diode, TRANSZORB SMAJ, Bidirectional, 33 V, 53.3 V, DO-214AC (SMA), 2 Pins

  • Product Range: TRANSZORB SMAJ Series
  • TVS Polarity: Bidirectional
  • Reverse Stand-Off Voltage Vrwm: 33V
  • Clamping Voltage Vc Max: 53.3V
  • Diode Case Style: DO-214AC
  • No. of Pins: 2Pins
  • Breakdown Voltage Min: 36.7V
  • Breakdown Voltage Max: 40.6V
  • Peak Pulse Power Dissipation: 400W
  • Automotive Qualification Standard: AEC-Q101
  • SVHC: Lead (15-Jan-2019)
  • Breakdown Voltage: 40.6V
  • Breakdown Voltage Range: 36.7V to 40.6V
  • Breakover Voltage Min: 36.7V
  • Current Ir Max: 1mA
  • Diode Type: Bidirectional TVS
  • External Depth: 5.6mm
  • External Length / Height: 2.9mm
  • Forward Surge Current Ifsm Max: 40A
  • Operating Temperature Max: 150°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Peak Pulse Current Ippm: 7.5A
  • Power Dissipation Pd: 400W
  • Reverse Leakage Current Max: 1mA
  • Reverse Voltage Vr Max: 40.6V
  • Stand-off Voltage: 33V
  • Termination Type: Surface Mount Device
  • Test Current: 1mA
  • Time Measured: 50ms
