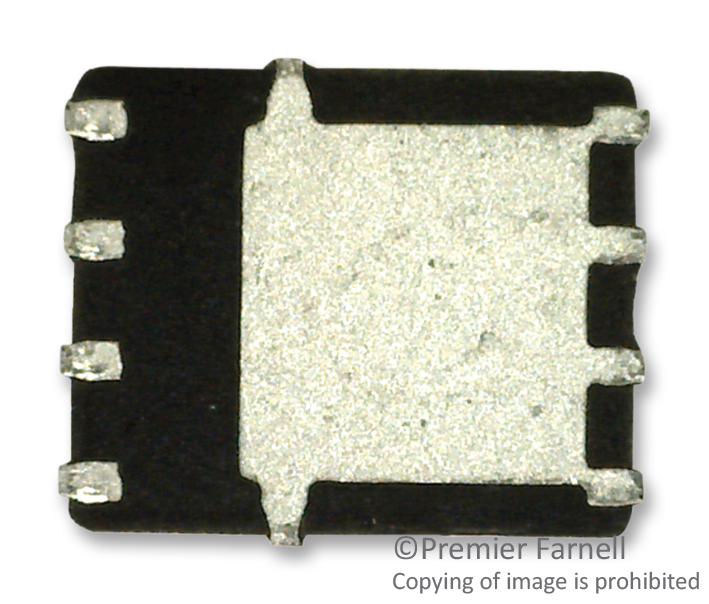

SI7850DP-T1-e3 MOSFET, N, SO-8 Vishay

VISHAYSKU: SI7850DP-T1-E3 Order code: 1470136

Price:
Sale price€5,25

Tax included Shipping calculated at checkout

Stock:
In stock (4796 units), ready to be shipped

Documents et téléchargements

Description

VISHAY - SI7850DP-T1-E3 - Power MOSFET, N Channel, 60 V, 10.3 A, 0.022 ohm, PowerPAK SO, Surface Mount

  • Transistor Polarity: N Channel
  • Continuous Drain Current Id: 10.3A
  • Drain Source Voltage Vds: 60V
  • On Resistance Rds(on): 0.022ohm
  • Rds(on) Test Voltage Vgs: 10V
  • Threshold Voltage Vgs: 3V
  • Power Dissipation Pd: 1.8W
  • Transistor Case Style: PowerPAK SO
  • No. of Pins: 8Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (15-Jun-2015)
  • Current Id Max: 10.3A
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Termination Type: Surface Mount Device
  • Voltage Vds Typ: 60V
  • Voltage Vgs Max: 3V
  • Voltage Vgs Rds on Measurement: 10V
