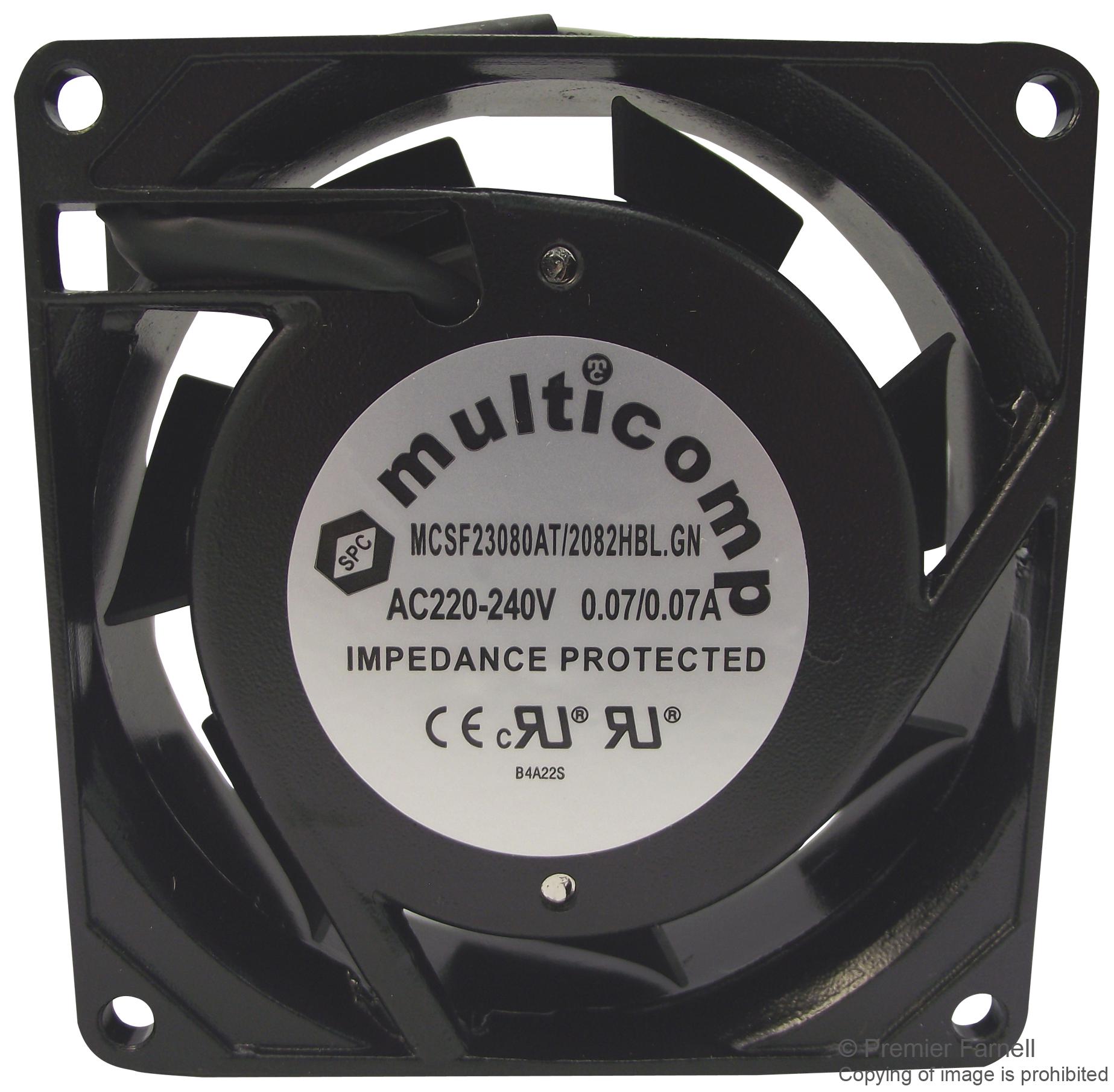

MULTICOMP - SF23080AT/2082HBL.GN - AC Axial Fan, 220V to 240V, Square, 80 mm, 25 mm, Ball Bearing, 22 CFM
- Supply Voltage: 230V
- Current Type: AC
- Fan Frame Size: 80mm
- External Depth: 25mm
- Noise Rating: 34.5dBA
- Flow Rate - Imperial: 22cu.ft/min
- Flow Rate - Metric: 0.62m³/min
- Bearing Type: Ball
- Power Connection Type: 2 Lead Wires
- Current Rating: 70mA
- Product Range: Slimline Series
- Power Rating: -
- IP Rating: -
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CSA, UL
- External Height: 80mm
- External Width: 80mm
- Fixing Centres: 71.5mm
- Fixing Hole Diameter: 4.3mm
- Flammability Rating: UL94V-0
- Frame Dimensions: 80mm x 80mm x 25mm
- Operating Temperature Max: 70°C
- Operating Temperature Min: -10°C
- Operating life Time: 30000h
- Panel Cutout Diameter: 77mm
- Power Consumption: 14W
- Speed Range Max: 2900rpm
- Type: Slimline
