Description

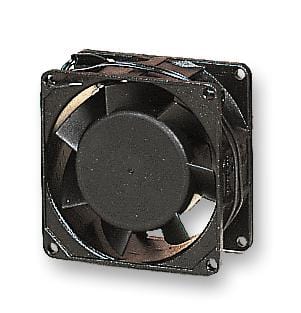

MULTICOMP - SF11580A/1083HSL.GN - AC Axial Fan, 115V, Square, 80 mm, 38 mm, Sleeve Bearing, 30 CFM
- Supply Voltage: 115V
- Current Type: AC
- Fan Frame Size: 80mm
- External Depth: 38mm
- Noise Rating: 35dBA
- Flow Rate - Imperial: 30cu.ft/min
- Flow Rate - Metric: 51m³/h
- Bearing Type: Sleeve
- Power Connection Type: 2 Lead Wires
- Current Rating: 150mA
- Product Range: Slimline Series
- Power Rating: -
- IP Rating: -
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CSA, TUV, UL
- External Diameter: 80mm
- External Height: 80mm
- External Width: 80mm
- Fixing Centres: 71.5mm
- Fixing Hole Diameter: 4.3mm
- Flammability Rating: UL94V-0
- Frame Dimensions: 80mm x 80mm x 38mm
- Lead Length: 300mm
- Operating Temperature Max: 70°C
- Operating Temperature Min: -10°C
- Operating life Time: 30000h
- Panel Cutout Diameter: 77mm
- Power Consumption: 12W
- Speed Range Max: 2450rpm
- Type: Standard,80mm
