Description

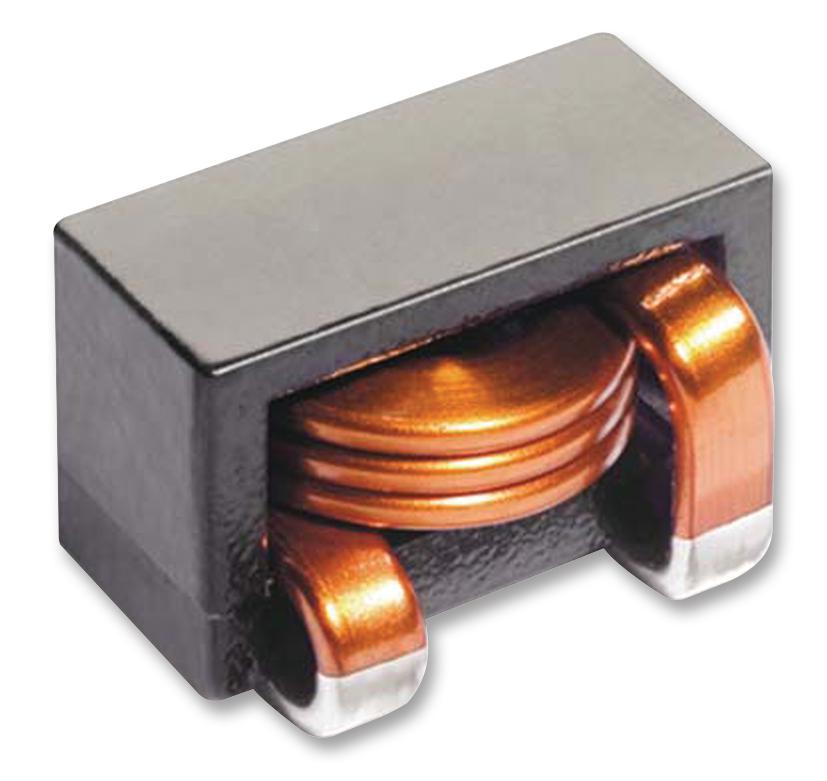

COILCRAFT - SER1408-102MED - Power Inductor (SMD), 1 µH, 42 A, Shielded, 12.1 A, SER1400
- Inductance: 1µH
- RMS Current (Irms): 42A
- Inductor Construction: Shielded
- Saturation Current (Isat): 12.1A
- Product Range: SER1400 Series
- Power Inductor Case: 15.24mm x 6.88mm x 8.26mm
- DC Resistance Max: 550µohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Self Resonant Frequency Min: 48MHz
