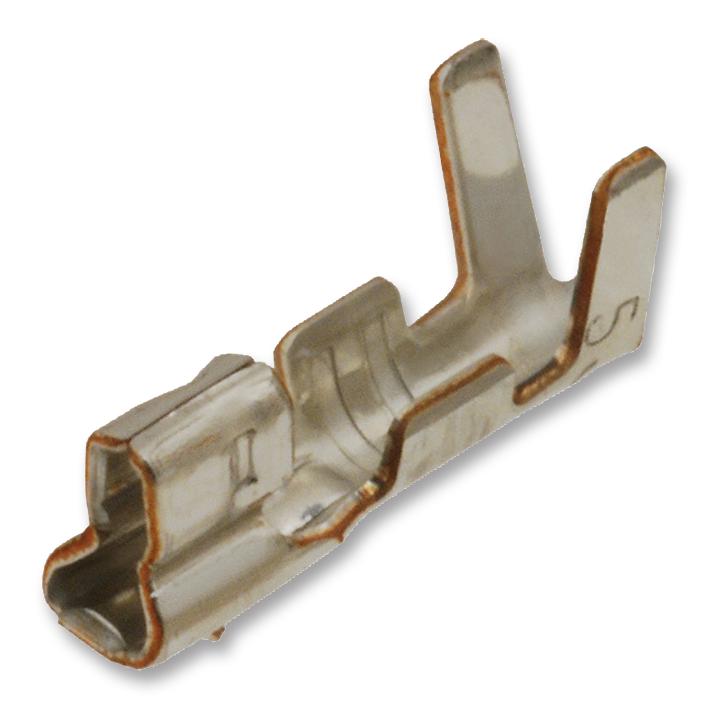

SEH-001T-P0.6 Contact, Crimp, Receptacle, 30-22AWG JST (Japan Solderless Terminals)

JST (JAPAN SOLDERLESS TERMINALS)SKU: SEH-001T-P0.6 Order code: 1863249

Price:
Sale price€0,06

Tax included Shipping calculated at checkout

Stock:
In stock (573720 units), ready to be shipped

Documents et téléchargements

Description

JST (JAPAN SOLDERLESS TERMINALS) - SEH-001T-P0.6 - Contact, EH, Socket, Crimp, 22 AWG, Tin Plated Contacts, EH series Housing

  • Product Range: EH Series
  • Contact Gender: Socket
  • Contact Termination Type: Crimp
  • Wire Size AWG Max: 22AWG
  • Contact Plating: Tin Plated Contacts
  • For Use With: EH series Housing
  • Wire Size AWG Min: 30AWG
  • Contact Material: Phosphor Bronze
  • SVHC: No SVHC (27-Jun-2018)
  • Cable Diameter Max: 1.9mm
  • Cable Diameter Min: 1mm
  • Contact Resistance: 10mohm
  • Contact Termination: Crimp
  • Current Rating: 3A
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -25°C
  • Wire Area Size Max: 0.33mm²
  • Wire Area Size Min: 0.05mm²
  • Working Voltage: 250V
