SDV2415R SSR, 240VAC SENSATA/CRYDOM

SENSATA/CRYDOMSKU: SDV2415R Order code: 1200274

Price:
Sale price€31,34

Tax included Shipping calculated at checkout

Stock:
In stock (46 units), ready to be shipped

Documents et téléchargements

Description

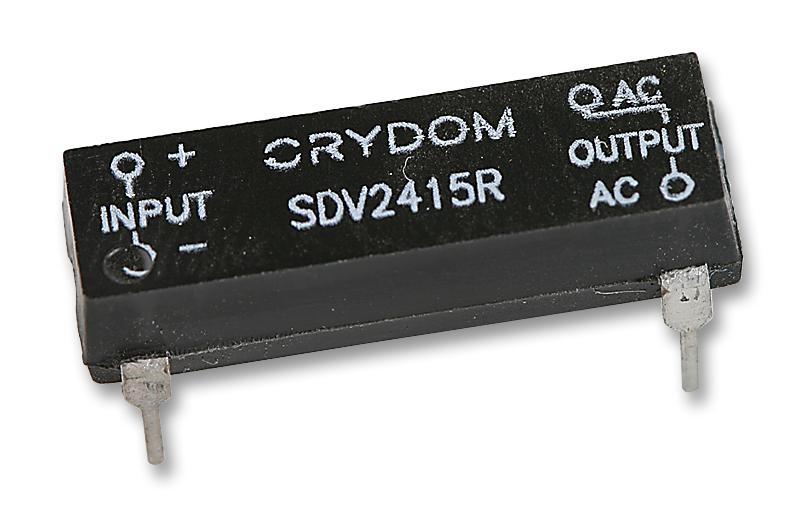

SENSATA/CRYDOM - SDV2415R - Solid State Relay, SDV Series, DIP, SPST-NO, 1.5 A, 280 VAC, PCB, Through Hole, Random Turn On

  • Contact Configuration: SPST-NO
  • Load Current: 1.5A
  • Operating Voltage Max: 280VAC
  • Relay Mounting: PCB
  • Relay Terminals: Through Hole
  • Switching Mode: Random Turn On
  • Operating Voltage Min: 12VAC
  • Control Voltage Min: 3.5VDC
  • Control Voltage Max: 10VDC
  • Product Range: SDV Series
  • SVHC: No SVHC (12-Jan-2017)
  • Control Voltage DC Max: 10VDC
  • Control Voltage DC Min: 3VDC
  • Control Voltage Range: 3V DC to 10V DC
  • Control Voltage Type: DC
  • External Depth: 4.8mm
  • External Length / Height: 21.6mm
  • External Width: 6.7mm
  • Input Voltage: 3.5V DC to 10V DC
  • Isolation Voltage: 3.75kV
  • Load Current Max: 1.5A
  • Load Current Min: 0.025A
  • Load Current RMS Max: 1.5A
  • Load Voltage Range: 12Vrms to 280Vrms
  • Operating Voltage Range: 0V DC to 60V DC
  • Output Type: Thyristor
  • RMS Load Current Min: 0.025A
  • RMS Load Voltage Max: 280V
  • RMS Load Voltage Min: 12V
  • Rate of Voltage Change dv / dt: 500V/µs
  • Surge Current: 30A
