Description

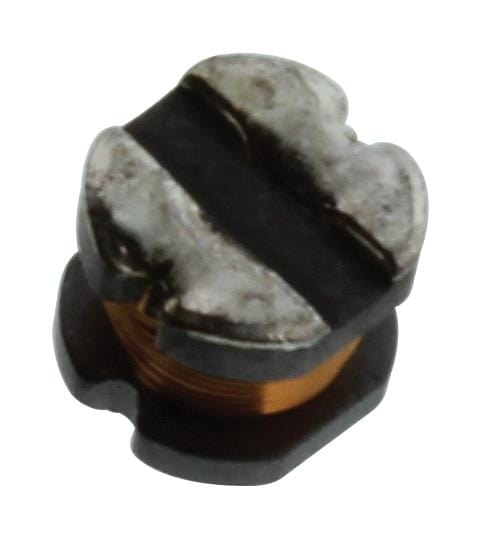

BOURNS - SDR0603-121KL - Power Inductor (SMD), 120 µH, 360 mA, Unshielded, 600 mA, SDR0603, 5.8mm x 5.8mm x 3.9mm
- Inductance: 120µH
- RMS Current (Irms): 360mA
- Inductor Construction: Unshielded
- Saturation Current (Isat): 600mA
- Product Range: SDR0603 Series
- Power Inductor Case: 5.8mm x 5.8mm x 3.9mm
- DC Resistance Max: 1.1ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2018)
- Q Factor: 27
- Q Test Frequency: 796kHz
- Self Resonant Frequency Min: 8MHz
