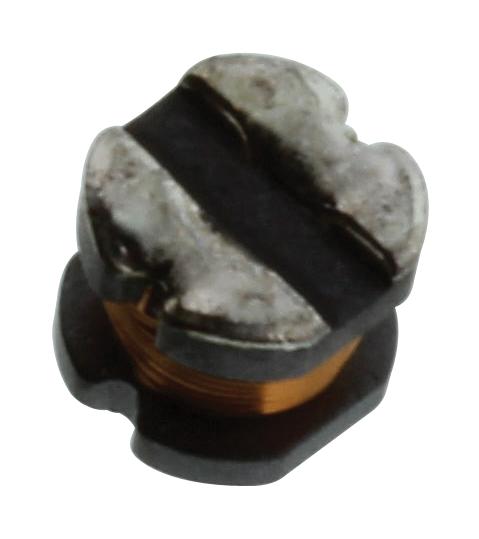

BOURNS - SDR0503-121KL - Power Inductor (SMD), 120 µH, 370 mA, Unshielded, 450 mA, SDR0503
- Inductance: 120µH
- RMS Current (Irms): 370mA
- Inductor Construction: Unshielded
- Saturation Current (Isat): 450mA
- Product Range: SDR0503 Series
- Power Inductor Case: 5mm x 4.8mm x 3mm
- DC Resistance Max: 1.7ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2018)
- Q Factor: 40
- Q Test Frequency: 796kHz
- Self Resonant Frequency Min: 8MHz
