Description

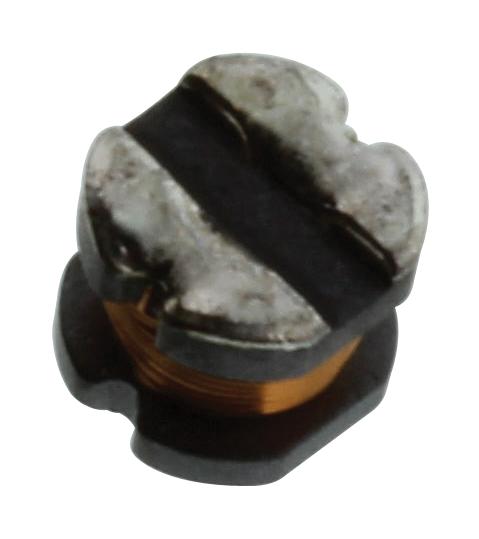

BOURNS - SDR0403-3R9ML - Power Inductor (SMD), 3.9 µH, 1.98 A, Unshielded, 2.7 A, SDR0403
- Inductance: 3.9µH
- RMS Current (Irms): 1.98A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 2.7A
- Product Range: SDR0403 Series
- Power Inductor Case: 4.5mm x 4mm x 3.2mm
- DC Resistance Max: 0.076ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2018)
- Q Factor: 28
- Q Test Frequency: 7.96MHz
- Self Resonant Frequency Min: 55MHz
