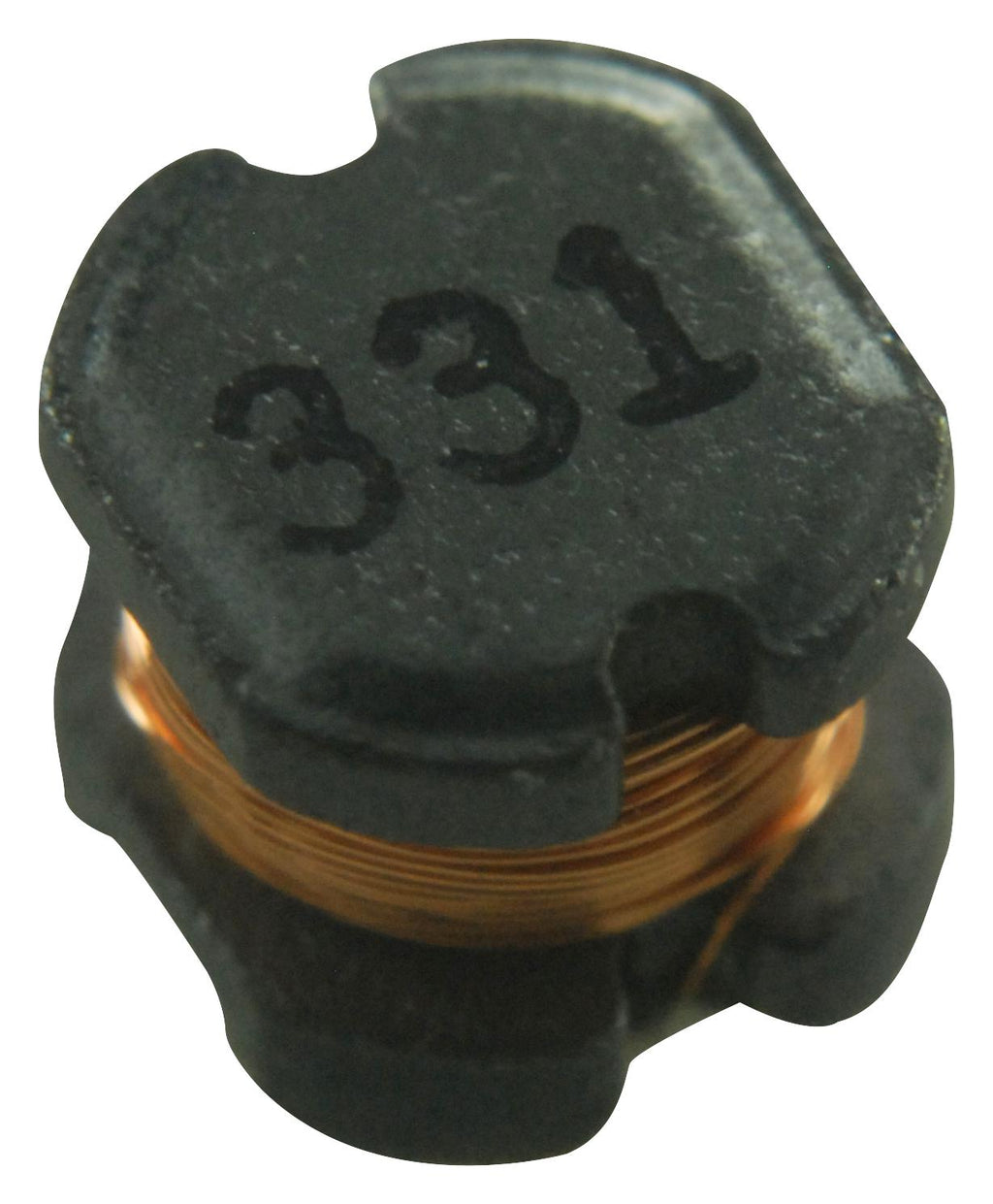

BOURNS - SDR0302-331KL - Power Inductor (SMD), 330 µH, 130 mA, Unshielded, 150 mA, SDR0302
- Inductance: 330µH
- RMS Current (Irms): 130mA
- Inductor Construction: Unshielded
- Saturation Current (Isat): 150mA
- Product Range: SDR0302 Series
- Power Inductor Case: 3mm x 2.8mm x 2.5mm
- DC Resistance Max: 10ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2018)
- Q Factor: 40
- Q Test Frequency: 796kHz
- Self Resonant Frequency Min: 6MHz
