SDL-120-T-10 . RECEPTACLE, 2.54MM, DUAL, 40WAY SAMTEC
Roll over image to zoom in Click on image to zoom

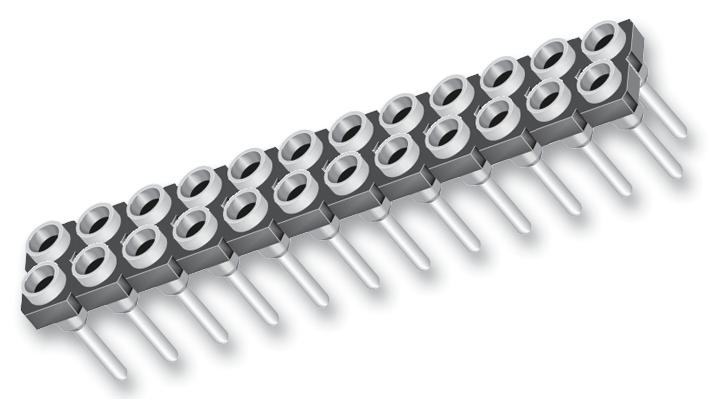

SDL-120-T-10 . RECEPTACLE, 2.54MM, DUAL, 40WAY SAMTEC

SDL-120-T-10 . RECEPTACLE, 2.54MM, DUAL, 40WAY SAMTEC

SAMTECSKU: SDL-120-T-10 . Order code: 1667950
Price:
€10,29

Tax included Shipping calculated at checkout

Stock:
Sold out

Documents et téléchargements

Description

SAMTEC - SDL-120-T-10 . - PCB Receptacle, Low Profile Hybrid, Board-to-Board, 2.54 mm, 2 Rows, 40 Contacts

  • Pitch Spacing: 2.54mm
  • No. of Contacts: 40Contacts
  • Gender: Receptacle
  • Product Range: SDL Series
  • Contact Termination Type: Through Hole
  • No. of Rows: 2Rows
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Beryllium Copper
  • SVHC: No SVHC (15-Jan-2018)
  • Colour: Black
  • Contact Resistance: 10mohm
  • Contact Termination: Through Hole Vertical
  • Current Rating: 1A
  • External Length / Height: 3.1mm
  • Lead Spacing: 2.54mm
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Row Pitch: 2.54mm
  • Termination Method: Solder
