Description

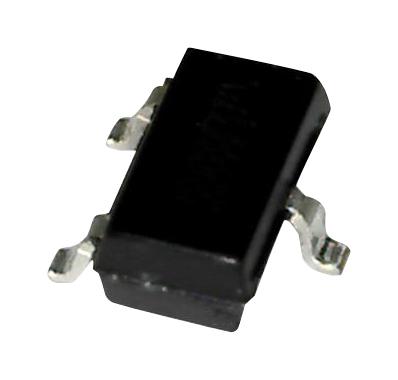

ONSEMI - SC431AVSNT1G - Voltage Reference, AEC-Q100, Shunt - Programmable, 2.5V, 1% Ref, 50ppm/°C, SOT-23-3
- Voltage Reference Type: Shunt - Programmable
- Product Range: SC431A Series
- Reference Voltage: 2.5V
- Initial Accuracy: 1%
- Temperature Coefficient: 50ppm/°C
- Voltage Reference Case Style: SOT-23
- No. of Pins: 3Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Automotive Qualification Standard: AEC-Q100
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
