Description

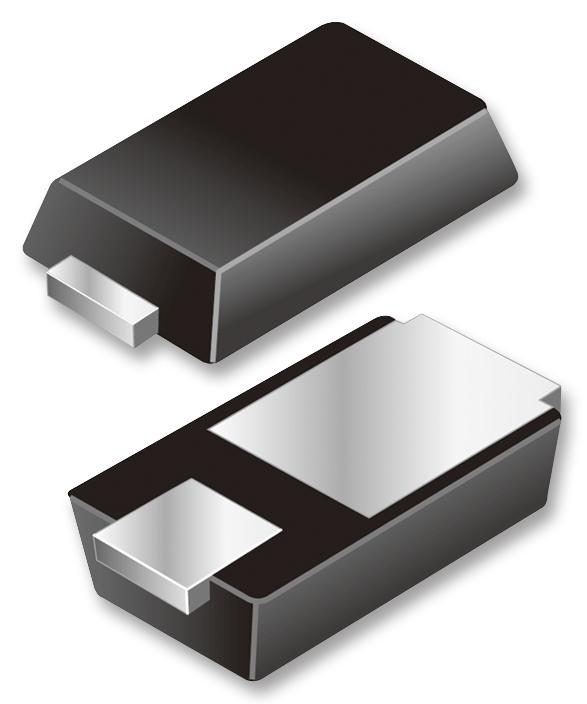

DIODES INC. - SBR1U400P1-7 - Standard Recovery Diode, 400 V, 1 A, Single, 820 mV, 85 ns, 40 A
- Repetitive Reverse Voltage Vrrm Max: 400V
- Forward Current If(AV): 1A
- Diode Configuration: Single
- Forward Voltage VF Max: 820mV
- Reverse Recovery Time trr Max: 85ns
- Forward Surge Current Ifsm Max: 40A
- Operating Temperature Max: 175°C
- Diode Case Style: PowerDI 123
- No. of Pins: 2Pins
- Product Range: SB Series
- Automotive Qualification Standard: -
- SVHC: Lead (15-Jan-2019)
- Diode Type: Fast Recovery
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +175°C
