Description

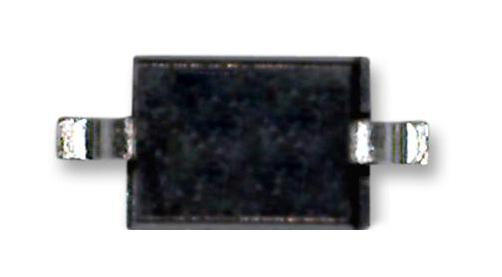

ONSEMI - SBAS16HT1G - Small Signal Diode, Single, 100 V, 200 mA, 1.25 V, 6 ns, 36 A
- Diode Configuration: Single
- Repetitive Reverse Voltage Vrrm Max: 100V
- Forward Current If(AV): 200mA
- Forward Voltage VF Max: 1.25V
- Reverse Recovery Time trr Max: 6ns
- Forward Surge Current Ifsm Max: 36A
- Operating Temperature Max: 150°C
- Diode Case Style: SOD-323
- No. of Pins: 2Pins
- Product Range: -
- Automotive Qualification Standard: AEC-Q101
- SVHC: No SVHC (27-Jun-2018)
