SB340-e3/73 Diode, Schottky, 3a, 40V Vishay

VISHAYSKU: SB340-E3/73 Order code: 9550372

Price:
Sale price€0,67

Tax included Shipping calculated at checkout

Stock:
In stock (770 units), ready to be shipped

Documents et téléchargements

Description

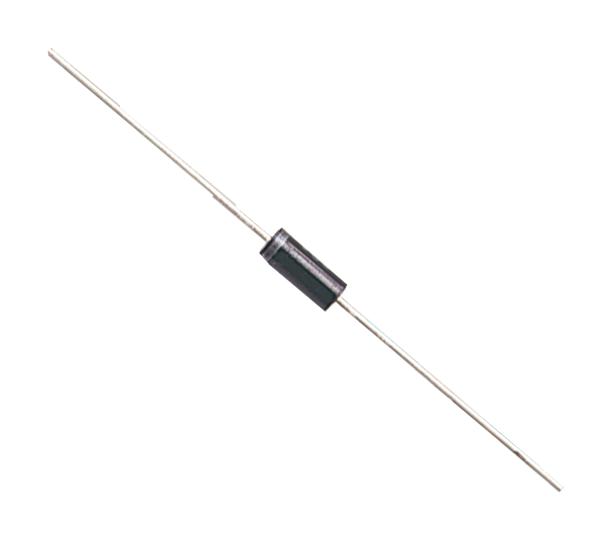

VISHAY - SB340-E3/73 - Schottky Rectifier, 40 V, 3 A, Single, DO-201AD, 2 Pins, 490 mV

  • Repetitive Reverse Voltage Vrrm Max: 40V
  • Forward Current If(AV): 3A
  • Diode Configuration: Single
  • Diode Case Style: DO-201AD
  • No. of Pins: 2Pins
  • Forward Voltage VF Max: 490mV
  • Forward Surge Current Ifsm Max: 80A
  • Operating Temperature Max: 125°C
  • Product Range: SB Series
  • Automotive Qualification Standard: -
  • SVHC: Lead (15-Jan-2019)
  • Current Ifsm: 120A
  • Diode Type: Schottky
  • External Diameter: 5.6mm
  • External Length / Height: 9.5mm
  • Forward Current If Max: 3A
  • Junction Temperature Tj Max: 150°C
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +125°C
  • Semiconductor Technology: Si
