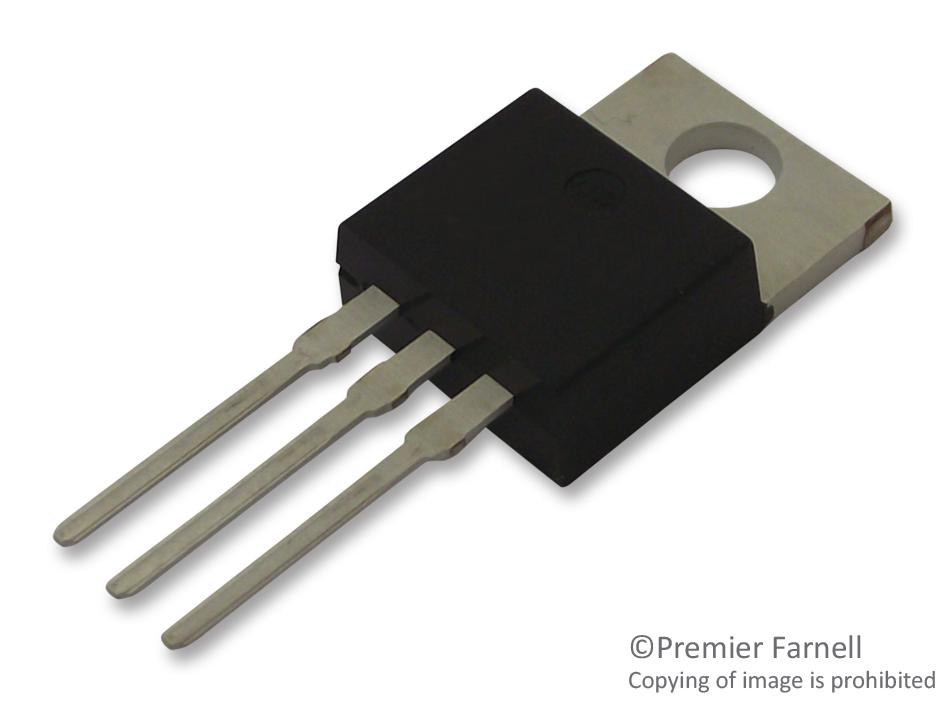

LITTELFUSE - S4025RTP - Thyristor, 400 V, 35 mA, 16 A, 25 A, TO-220AB, 3 Pins
- Peak Repetitive Off-State Voltage, Vdrm: 400V
- Gate Trigger Current Max, Igt: 35mA
- Current It av: 16A
- On State RMS Current IT(rms): 25A
- Thyristor Case Style: TO-220AB
- No. of Pins: 3Pins
- Peak Non Rep Surge Current Itsm 50Hz: 255A
- Holding Current Max Ih: 50mA
- Gate Trigger Voltage Max Vgt: 1.5V
- Operating Temperature Max: 125°C
- Product Range: Sxx25x Series
- MSL: -
- SVHC: No SVHC (20-Jun-2016)
