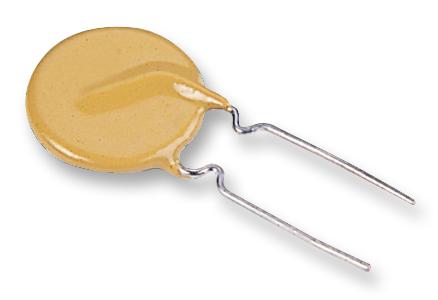

RXEF065 PolySwitch, Radial, 0.65A LITTELFUSE

LITTELFUSESKU: RXEF065 Order code: 1175867

Price:
Sale price€0,82

Tax included Shipping calculated at checkout

Stock:
In stock (6310 units), ready to be shipped

Documents et téléchargements

Description

LITTELFUSE - RXEF065 - Resettable Fuse, PPTC, PolySwitch RXEF, 72 VDC, 650 mA, 1.3 A, 5.3 s, Round

  • Thermistor Mounting: Through Hole
  • Product Range: PolySwitch RXEF Series
  • Holding Current: 650mA
  • Tripping Current: 1.3A
  • Voltage Rating: 72VDC
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jun-2015)
  • Approval Bodies: CSA, TUV
  • Approval Category: UL Recognised
  • Body Diameter: 9.7mm
  • Carrying Current Max: 40A
  • External Depth: 3mm
  • External Length / Height: 14.5mm
  • External Width: 9.7mm
  • Flammability Rating: UL94V-0
  • Height: 14.5mm
  • Holding Current Max Ih: 0.65A
  • Initial Resistance Max: 0.48ohm
  • Initial Resistance Min: 0.31ohm
  • Interrupt Current Max: 40A
  • Lead Diameter: 0.51mm
  • Lead Length: 7.6mm
  • Lead Spacing: 5.1mm
  • Operating Voltage: 72V
  • PTC Fuse Case Style: Radial Leaded
  • Reset Time: 20s
  • Resistance: 0.72ohm
  • Surface Tripped Temperature Max: 125°C
  • Thermistor Type: PTC Resettable Fuse
