Description

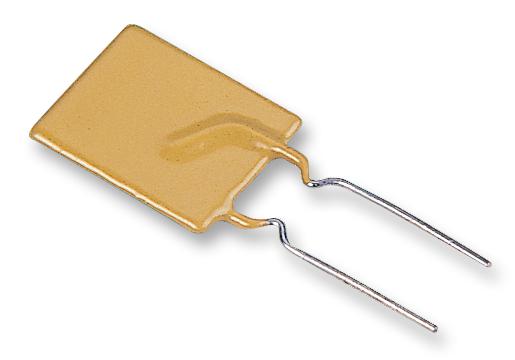

LITTELFUSE - RUEF400 - Resettable Fuse, PPTC, PolySwitch RUEF Series, 30 VDC, 4 A, 8 A, 12.7 s, Rectangular
- Thermistor Mounting: Through Hole
- Product Range: PolySwitch RUEF Series
- Holding Current: 4A
- Tripping Current: 8A
- Voltage Rating: 30VDC
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jun-2015)
- Approval Bodies: CSA, TUV
- Approval Category: UL Recognised
- Carrying Current Max: 100A
- External Depth: 3mm
- External Length / Height: 20.1mm
- External Width: 14mm
- Flammability Rating: UL94V-0
- Height: 20.1mm
- Holding Current Max Ih: 4A
- Initial Resistance Max: 0.05ohm
- Initial Resistance Min: 0.01ohm
- Lead Diameter: 0.51mm
- Lead Length: 7.6mm
- Lead Spacing: 5.1mm
- Operating Voltage: 30V
- PTC Fuse Case Style: Radial Leaded
- Reset Time: 20s
- Surface Tripped Temperature Max: 125°C
- Thermistor Type: PTC Resettable Fuse
