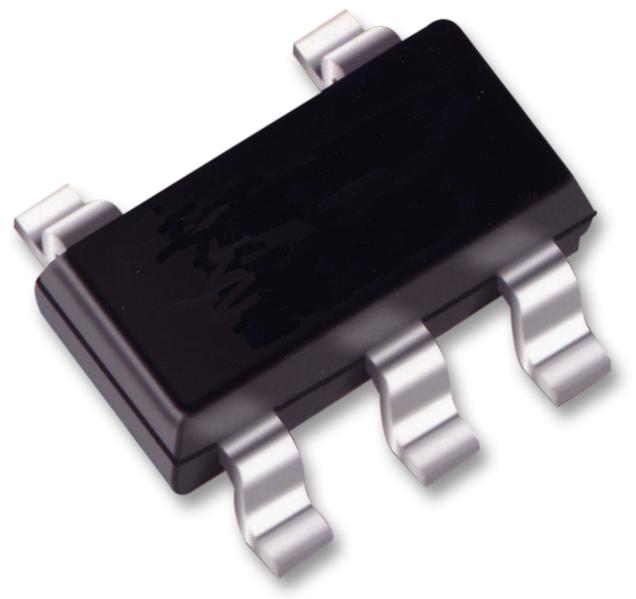

RICHTEK - RT9078-12GJ5 - LDO Voltage Regulator, Fixed, 1.2 V to 5.5 V in, 1.2 V/300 mA out, 400 mV drop, TSOT-23-5
- Output Type: Fixed
- Input Voltage Min: 1.2V
- Input Voltage Max: 5.5V
- Fixed Output Voltage Nom.: 1.2V
- Adjustable Output Voltage Min: -
- Adjustable Output Voltage Max: -
- Output Current: 300mA
- Dropout Voltage Vdo: 400mV
- LDO Regulator Case Style: TSOT-23
- No. of Pins: 5Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: 1.2V 300mA LDO Voltage Regulators
- Automotive Qualification Standard: -
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
