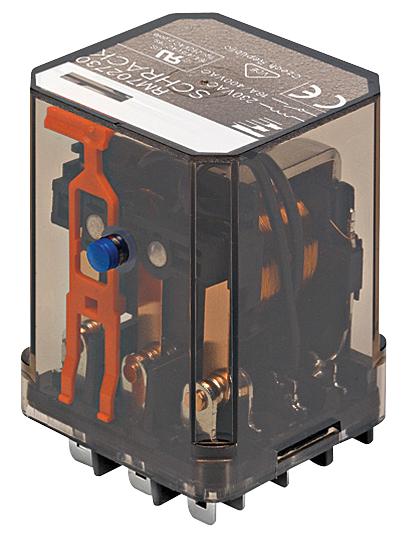

TE CONNECTIVITY - RM225730 - General Purpose Relay, RM2 Series, Power, Non Latching, DPDT, 230 VAC, 16 A
- Contact Configuration: DPDT
- Coil Voltage: 230VAC
- Contact Current: 16A
- Product Range: RM2 Series
- Relay Mounting: Panel
- Coil Type: Non Latching
- Contact Voltage VAC: 400VAC
- Relay Terminals: Quick Connect
- Contact Voltage VDC: -
- Contact Material: Silver Nickel
- Coil Resistance: 8.3kohm
- AC Coil Power: 2.3VA
- Approval Bodies: VDE
- Approval Category: UL Recognised
- Coil Current: 10.1mA
- Coil Voltage VAC Nom: 230V
- Contact Current AC Max: 16A
- Contact Current Max: 16A
- Contact Voltage AC Nom: 380V
- External Depth: 35.5mm
- External Height: 48.5mm
- External Length / Height: 48.5mm
- External Width: 38.5mm
- Nom Operating Power: 2.3VA
- Operating Temperature Max: 55°C
- Operating Temperature Min: -45°C
- Operating Time: 15ms
- Relay Type: Power
- Release Time: 10ms
- Termination Type: Quick Connect
- Voltage Rating VAC: 400VAC
