Description

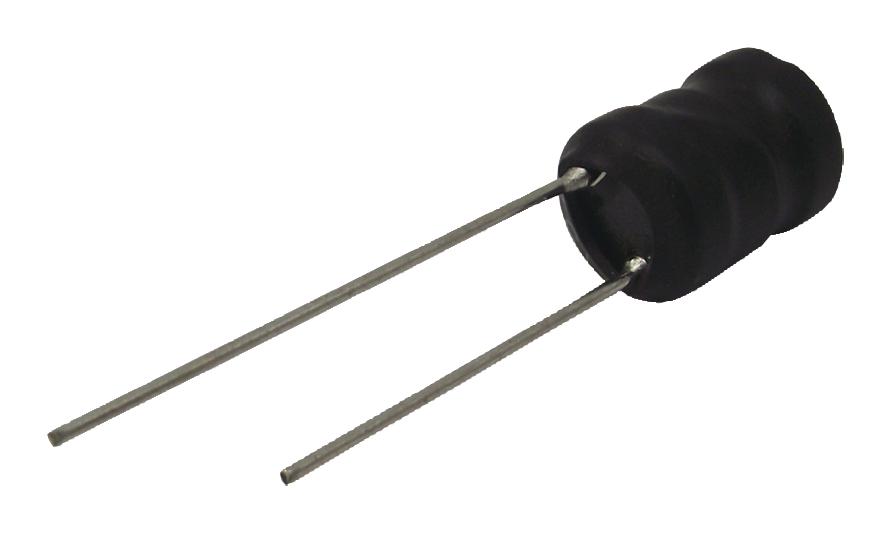

BOURNS - RLB0914-3R3ML... - Inductor, Radial, RLB Series, 3.3 µH, 3.6 A, 0.027 ohm, ± 20%
- Product Range: RLB Series
- Inductance: 3.3µH
- RMS Current (Irms): 3.6A
- Saturation Current (Isat): 11.3A
- DC Resistance Max: 0.027ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2018)
- Core Material: Ferrite DR
- DC Current Rating: 3.6A
- Lead Spacing: 5mm
- No. of Pins: 2Pins
- Q Factor: 20
- Q Test Frequency: 7.96MHz
- Self Resonant Frequency Min: 70MHz
