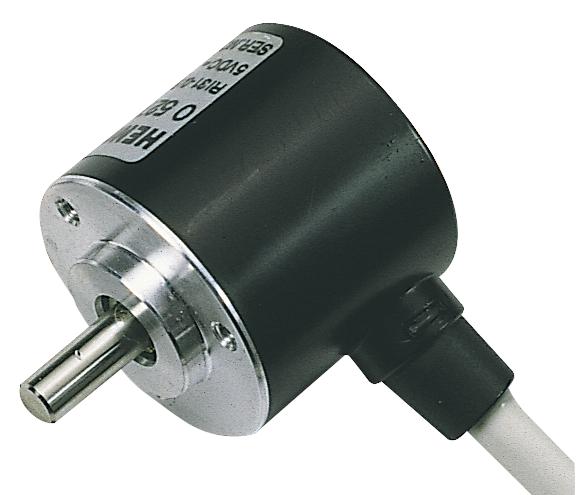

HENGSTLER - RI32-0/1000AR.14KB - Rotary Encoder, Optical, Incremental, 1000 PPR, 0 Detents, Horizontal, Without Push Switch
- Supply Voltage Min: -
 - Supply Voltage Max: 5V
 - No. of Channels: 3Channels
 - Rotational Speed Max: 4000rpm
 - Product Range: -
 - SVHC: No SVHC (07-Jul-2017)
 - Body Diameter: 30mm
 - Connector Type: Cable
 - Current Consumption: 30mA
 - Encoder Resolution: 1000
 - External Length / Height: 27mm
 - Lead Length: 1.5m
 - Load Current: 10mA
 - No. of Pulses Per Revolution: 1000
 - Operating Temperature Max: 60°C
 - Operating Temperature Min: -10°C
 - Operating Temperature Range: -10°C to +60°C
 - Output Voltage Max: 2.5V
 - Output Voltage Min: 0.5V
 - Pulse Output Count: 1000
 - Rotational Speed: 4000rpm
 - Shaft Diameter: 5mm
 - Shaft Length: 12.5mm
 - Torque: 0.00005N-m
 - Type: Incremental Encoder
