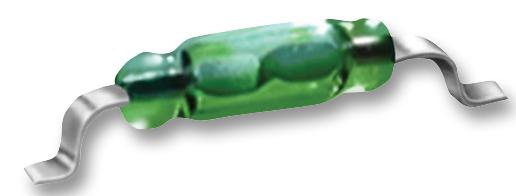

COMUS - RI-80SMD0515-G2 - Reed Switch, RI-80 SMD, SPST-NO, Surface Mount, 350 mA, 175 V, 5 W
- Product Range: RI-80 SMD Series
 - Contact Configuration: SPST-NO
 - Switch Mounting: SMD
 - Contact Current Max: 350mA
 - Switching Voltage Max: 175V
 - Switching Power Max: 5W
 - Contact Resistance Max: 0.16ohm
 - Operate AT Min: 5AT
 - Operate AT Max: 15AT
 - SVHC: No SVHC (27-Jun-2018)
 - Body Diameter: 1.8mm
 - Body Length: 5mm
 - Body Material: Glass
 - Breakdown Voltage Vbr: 230V
 - Contact Current AC Max: 250mA
 - Contact Current DC: 0.5A
 - Contact Current DC Max: 350mA
 - Contact Resistance: 160mohm
 - Off Switching Time: 20 µs
 - On Switching Time: 0.35 ms
 - Operating Temperature Max: 125°C
 - Operating Temperature Min: -55°C
 - Operation Ampere Turns Range: 5AT to 15AT
 - Overall Length: 10.16mm
 - Release AT Max: 13AT
 - Release AT Min: 2AT
 - Switch Case: Glass
 - Switching Current AC Max: 250mA
 - Switching Current DC Max: 350mA
 - Switching Voltage AC / DC Max: 140VAC
