Description

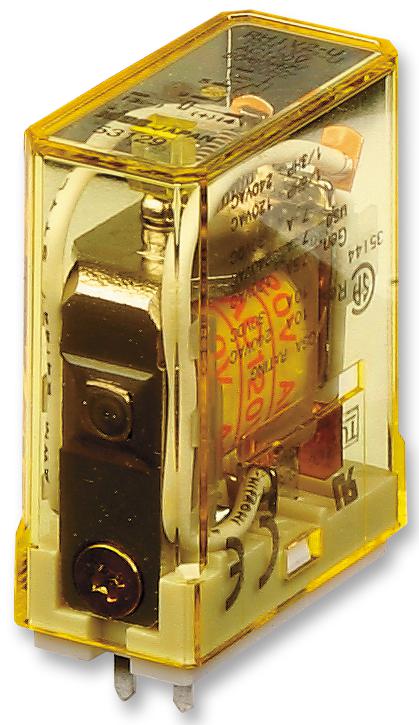

IDEC - RH1B-UDC24V - General Purpose Relay, RH Series, Power, Non Latching, SPDT, 24 VDC, 10 A
- Contact Configuration: SPDT
- Coil Voltage: 24VDC
- Contact Current: 10A
- Product Range: RH Series
- Relay Mounting: Socket
- Coil Type: Non Latching
- Contact Voltage VAC: 110VAC
- Relay Terminals: Quick Connect
- Contact Voltage VDC: 30VDC
- Contact Material: Silver Cadmium Oxide
- Coil Resistance: 750ohm
- SVHC: No SVHC (15-Jan-2019)
- Approvals & Standards: CE, CSA, UL
- Coil Current: 32mA
- Coil Voltage VDC Nom: 24V
- Contact Current AC Max: 7A
- Contact Current DC Max: 10A
- Contact Current Max: 10A
- Contact Voltage AC Max: 220V
- Contact Voltage AC Nom: 220V
- Contact Voltage DC Max: 30V
- Contact Voltage DC Nom: 30V
- External Depth: 27.5mm
- External Height: 35.6mm
- External Length / Height: 35.6mm
- External Width: 14.5mm
- Nom Operating Power: 800mW
- Relay Type: Power - General Purpose
