Description

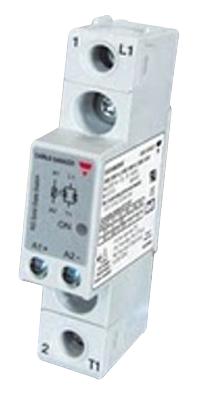

CARLO GAVAZZI - RGC1A23A30KKE - Solid State Relay, SPST, 30 A, 240 VAC, DIN Rail, Screw, Zero Crossing
- Contact Configuration: SPST
- Load Current: 30A
- Operating Voltage Max: 240VAC
- Relay Mounting: DIN Rail
- Relay Terminals: Screw
- Switching Mode: Zero Crossing
- Operating Voltage Min: 24VAC
- Control Voltage Min: 20VAC
- Control Voltage Max: 275VAC
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Control Voltage AC Max: 275VAC
- Control Voltage AC Min: 20VAC
- Control Voltage DC Max: 190VDC
- Control Voltage DC Min: 24VDC
- Control Voltage Range: 20V AC to 275V AC, 24V DC to 190V DC
- Control Voltage Type: AC, DC
- Operating Voltage Range: 24V AC to 240V AC
- Peak Surge Current: 600A
- Voltage Rating: 230V
