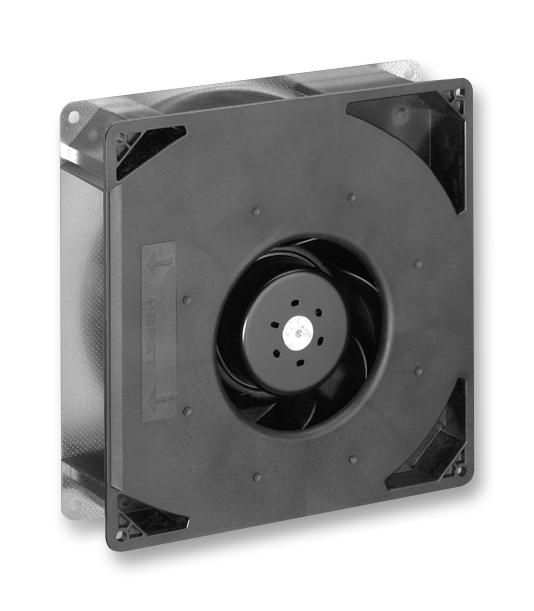

RG160-28/14N FAN, 220MM, 24VDC EBM-PAPST

EBM-PAPSTSKU: RG160-28/14N Order code: 9599975

Price:
Sale price€183,39

Tax included Shipping calculated at checkout

Stock:
In stock (52 units), ready to be shipped

Documents et téléchargements

Description

EBM-PAPST - RG160-28/14N - Fan Blower, RG160DC Series, IP20, Flatpak, 24 VDC, DC, 220 mm, 56 mm, 123 CFM

  • Blower Type: Flatpak
  • Supply Voltage: 24V
  • Current Type: DC
  • Fan Frame Size: 220mm
  • External Depth: 56mm
  • Flow Rate - Metric: 209m³/h
  • Flow Rate - Imperial: 123cu.ft/min
  • Noise Rating: 66dBA
  • Bearing Type: Ball
  • Power Connection Type: 2 Lead Wires
  • Power Rating: 20W
  • Product Range: RG160DC Series
  • IP Rating: IP20
  • SVHC: No SVHC (15-Jan-2019)
  • External Height: 220mm
  • External Width: 220mm
  • Frame Dimensions: 220mm x 220mm x 56mm
  • Lead Length: 300mm
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -20°C
  • Power Consumption: 20W
  • Speed Range Max: 2850rpm
  • Type: Flatpack, 220mm
