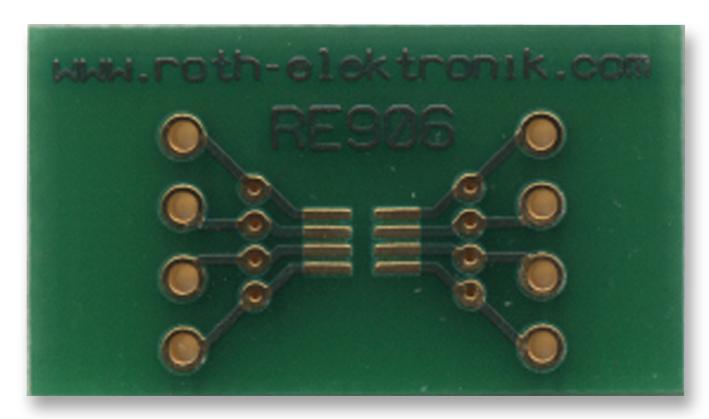

ROTH ELEKTRONIK - RE906 - Adaptor, SMD, Epoxy Glass Composite, 1.5mm, 13.5mm x 23.5mm
- Convert From: -
- Convert To: -
- Pitch Spacing: 0.65mm
- Row Pitch: -
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Board Connector / Footprint: SC-70, SOT23
- Board Material: Epoxy Glass Composite
- Board Thickness: 1.5mm
- Board Type: SMD Device Adapter
- Connector Type: SC
- Copper Coating Density: double-sided 35 µm
- Copper Thickness: 35µm
- External Height: 13.5mm
- External Length / Height: 13.5mm
- External Width: 23.5mm
- Hole Diameter: 1mm
- Hole Pitch: 0.3mm
- Material: Epoxy Fibreglass FR4
- No. of Copper Coated Sides: 2
- No. of Holes: 8
- PCB Size: 13.5 x 23.5 mm
- Pad Diameter: 1.5mm
