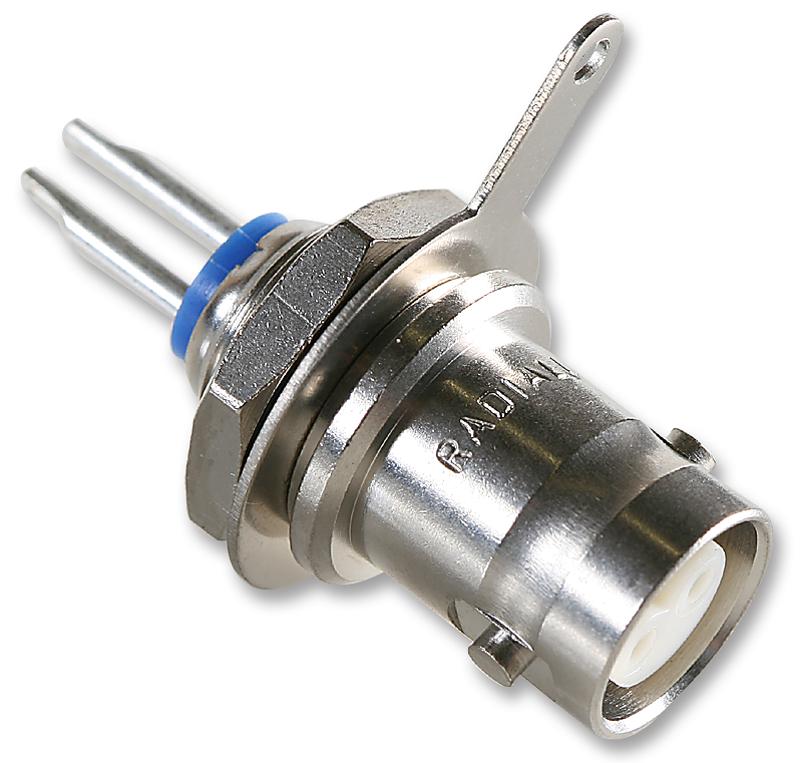

R605550000 Receptacle, BR2, Bulkhead, Rear RADIALL

RADIALLSKU: R605550000 Order code: 4197010

Price:
Sale price€54,27

Tax included Shipping calculated at checkout

Stock:
In stock (362 units), ready to be shipped

Documents et téléchargements

Description

RADIALL - R605550000 - RF / Coaxial Connector, Coaxial, Straight Bulkhead Jack, Solder, 50 ohm, Beryllium Copper

  • Connector Type: Coaxial
  • Connector Body Style: Straight Bulkhead Jack
  • Coaxial Termination: Solder
  • Impedance: 50ohm
  • Coaxial Cable Types: -
  • Contact Material: Beryllium Copper
  • Contact Plating: Silver Plated Contacts
  • Frequency Max: 500MHz
  • Connector Mounting: Panel Mount
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Connector Mounting Orientation: Panel
  • Insulation Resistance: 105Mohm
  • No. of Mating Cycles: 500
  • Operating Frequency Max: 1GHz
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -40°C
