Description

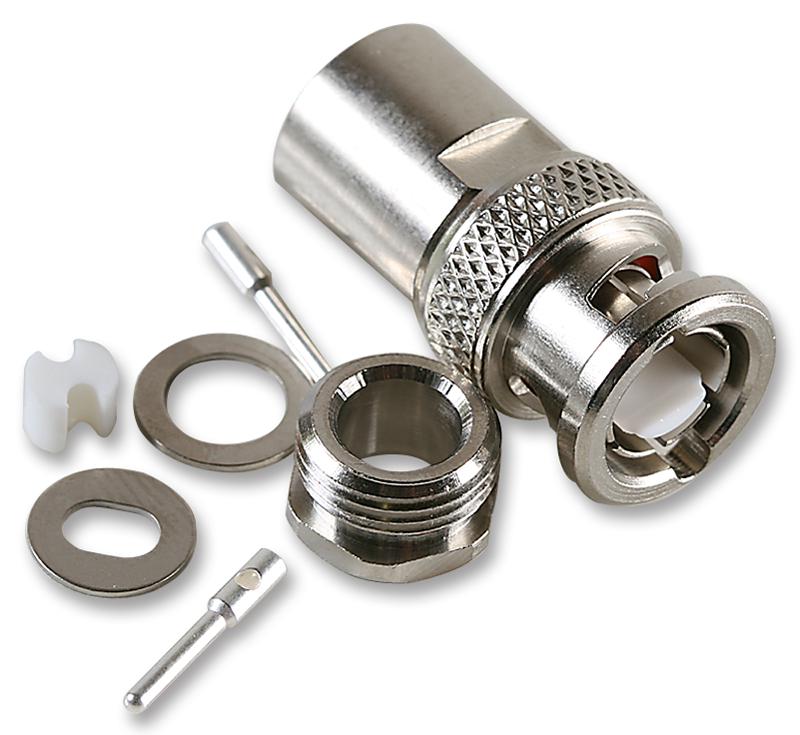

RADIALL - R605006000 - RF / Coaxial Connector, Coaxial, Straight Plug, Solder, 80 ohm, Brass
- Connector Type: Coaxial
- Connector Body Style: Straight Plug
- Coaxial Termination: Solder
- Impedance: 80ohm
- Coaxial Cable Types: -
- Contact Material: Brass
- Contact Plating: Silver Plated Contacts
- Frequency Max: 500MHz
- Connector Mounting: Cable Mount
- Product Range: -
- SVHC: No SVHC (12-Jan-2017)
- Coaxial Type: FM2
- Connector Mounting Orientation: Cable
- Insulation Resistance: 105Mohm
- No. of Mating Cycles: 500
- Operating Frequency Max: 1GHz
- Operating Temperature Max: 100°C
- Operating Temperature Min: -40°C
- Termination Method: Clamp
