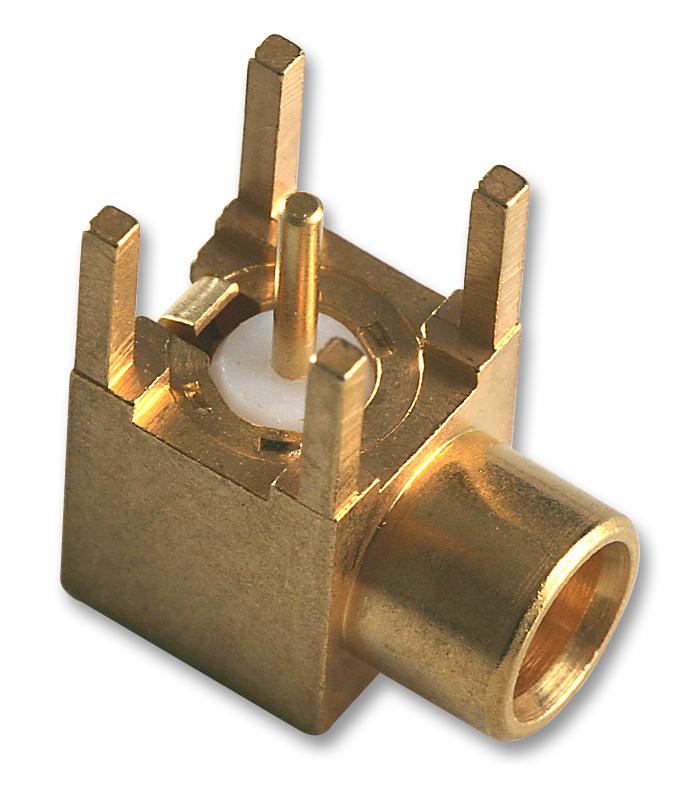

R213665000 RF Coaxial, MCX, Right Angle Jack, 75ohm RADIALL

RADIALLSKU: R213665000 Order code: 3044210

Price:
Sale price€20,54

Tax included Shipping calculated at checkout

Stock:
In stock (57 units), ready to be shipped

Documents et téléchargements

Description

RADIALL - R213665000 - RF / Coaxial Connector, MCX Coaxial, Right Angle Jack, Solder, 75 ohm, Beryllium Copper

  • Connector Type: MCX Coaxial
  • Connector Body Style: Right Angle Jack
  • Coaxial Termination: Solder
  • Impedance: 75ohm
  • Coaxial Cable Types: -
  • Contact Material: Beryllium Copper
  • Contact Plating: Gold Plated Contacts
  • Frequency Max: 6GHz
  • Connector Mounting: PCB Mount
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Body Plating: Gold
  • Connector Mounting Orientation: PCB
  • Material: Brass
  • Operating Frequency Max: 3GHz
  • Operating Temperature Max: 155°C
  • Operating Temperature Min: -55°C
  • Proof Voltage: 500V
  • Termination Method: Solder
  • VSWR: 1.35
  • Working Voltage: 170V
