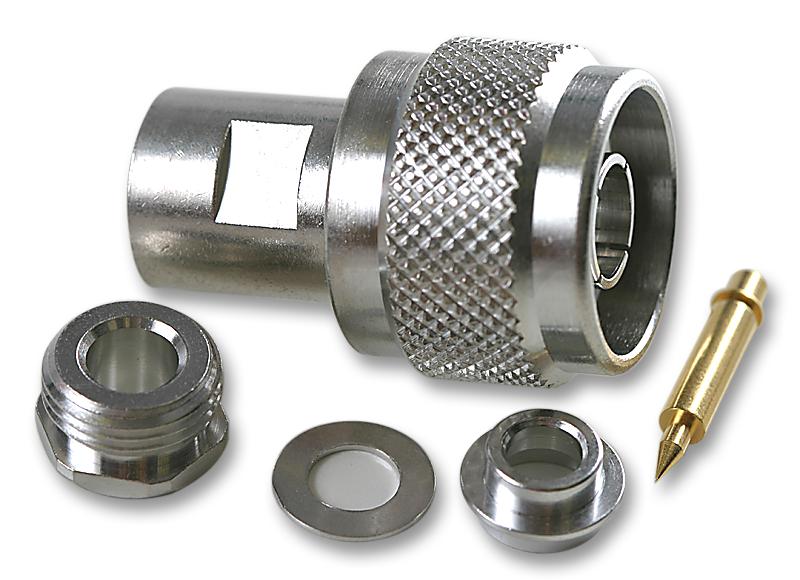

RADIALL - R161020000 - RF / Coaxial Connector, N Coaxial, Straight Plug, Solder, 50 ohm
- Connector Type: N Coaxial
- Connector Body Style: Straight Plug
- Coaxial Termination: Solder
- Impedance: 50ohm
- Coaxial Cable Types: RG11, RG144, RG165, RG213, RG214, RG216, RG225, RG393
- Contact Material: Brass
- Contact Plating: Gold Plated Contacts
- Frequency Max: 11GHz
- Connector Mounting: Cable Mount
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Body Plating: Bright Bronze
- Coaxial Type: RG165/U, RG213/U, RG215/U, URM67, URM102, KX4, RG393, RG11 A/U, RG12 A/U, RG144 A/U, URM57, URM65, KX8, RG119/U, RG214/U, RG225/U, URM91, URM112, KX13, KX24, RG216/U, URM60
- Connector Mounting Orientation: Cable
- Insulation Resistance: 5000Mohm
- Material: Brass
- No. of Mating Cycles: 500
- Operating Frequency Max: 11GHz
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Termination Method: Clamp
- Voltage Rating VAC: 850V
