Description

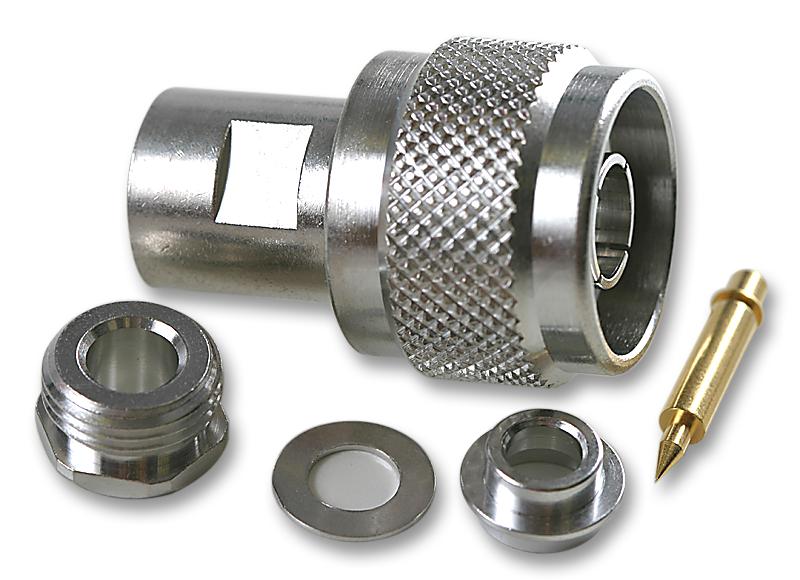

RADIALL - R161006000 - RF / Coaxial Connector, N Coaxial, Straight Plug, Solder, 50 ohm
- Connector Type: N Coaxial
- Connector Body Style: Straight Plug
- Coaxial Termination: Solder
- Impedance: 50ohm
- Coaxial Cable Types: RG58, RG141, RG142, RG142FTX, RG223, RG400
- Contact Material: Brass
- Contact Plating: Gold Plated Contacts
- Frequency Max: 11GHz
- Connector Mounting: Cable Mount
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Body Plating: Bright Bronze
- Coaxial Type: RG58 C/U, RG141 A/U, RG303/U, URM43, URM72, URM76, URM108, URM301, KX15, LMR200, RG55 B/U, RG142 B/U, RG223/U, RG400/U, KX23
- Connector Mounting Orientation: Cable
- Insulation Resistance: 5000Mohm
- Insulator Material: PTFE (Polytetrafluoroethylene)
- Material: Brass
- No. of Mating Cycles: 500
- Operating Frequency Max: 11GHz
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Termination Method: Clamp
- Voltage Rating VAC: 850V
