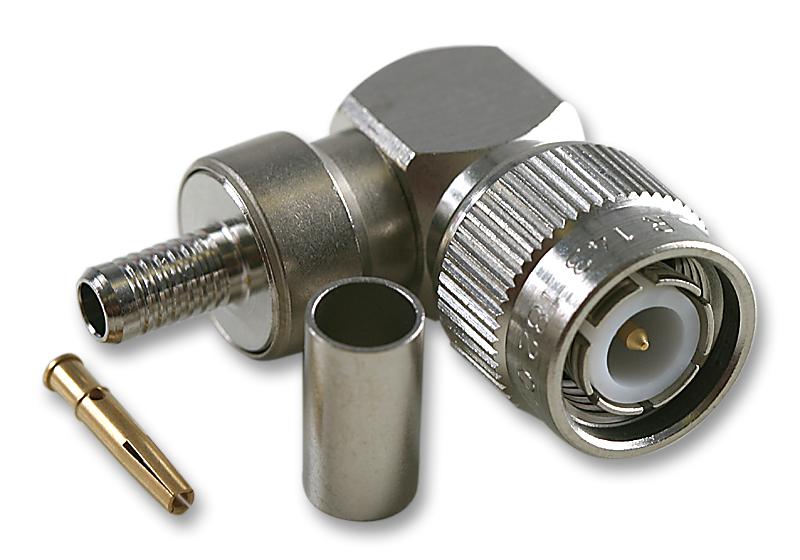

RADIALL - R143182000W - RF / Coaxial Connector, TNC Coaxial, Right Angle Plug, Crimp, 50 ohm, RG58, RG141, Brass
- Connector Type: TNC Coaxial
- Connector Body Style: Right Angle Plug
- Coaxial Termination: Crimp
- Impedance: 50ohm
- Coaxial Cable Types: RG58, RG141
- Contact Material: Brass
- Contact Plating: Gold Plated Contacts
- Frequency Max: 11GHz
- Connector Mounting: Cable Mount
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Coaxial Type: RG58 C/U, RG141 A/U, RG303/U, URM43, URM72, URM76, URM108, URM301, KX15, LMR 200
- Connector Mounting Orientation: Cable
- Insulation Resistance: 5000Mohm
- Material: Brass
- No. of Mating Cycles: 500
- Operating Frequency Max: 11GHz
- Operating Temperature Max: 165°C
- Operating Temperature Min: -65°C
- Termination Method: Crimp
- Voltage Rating VAC: 500V
- Withstand Voltage: 1000V
