R142334700 RF Coaxial, BNC, Straight Jack, 75ohm RADIALL

RADIALLSKU: R142334700 Order code: 1740813

Price:
Sale price€36,86

Tax included Shipping calculated at checkout

Stock:
In stock (25 units), ready to be shipped

Documents et téléchargements

Description

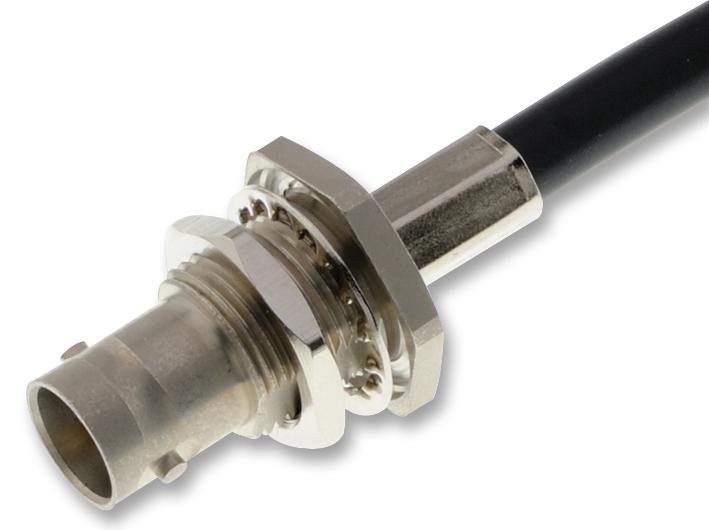

RADIALL - R142334700 - RF / Coaxial Connector, BNC Coaxial, Straight Bulkhead Jack, Crimp, 75 ohm, Beryllium Copper

  • Connector Type: BNC Coaxial
  • Connector Body Style: Straight Bulkhead Jack
  • Coaxial Termination: Crimp
  • Impedance: 75ohm
  • Coaxial Cable Types: -
  • Contact Material: Beryllium Copper
  • Contact Plating: Gold Plated Contacts
  • Frequency Max: 12GHz
  • Connector Mounting: Cable Mount
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Connector Mounting Orientation: Cable
  • Insulation Resistance: 5000Mohm
  • No. of Mating Cycles: 1000
  • Operating Temperature Max: 165°C
  • Operating Temperature Min: -65°C
  • Termination Method: Crimp
  • Voltage Rating VAC: 500V
  • Withstand Voltage: 1500V
