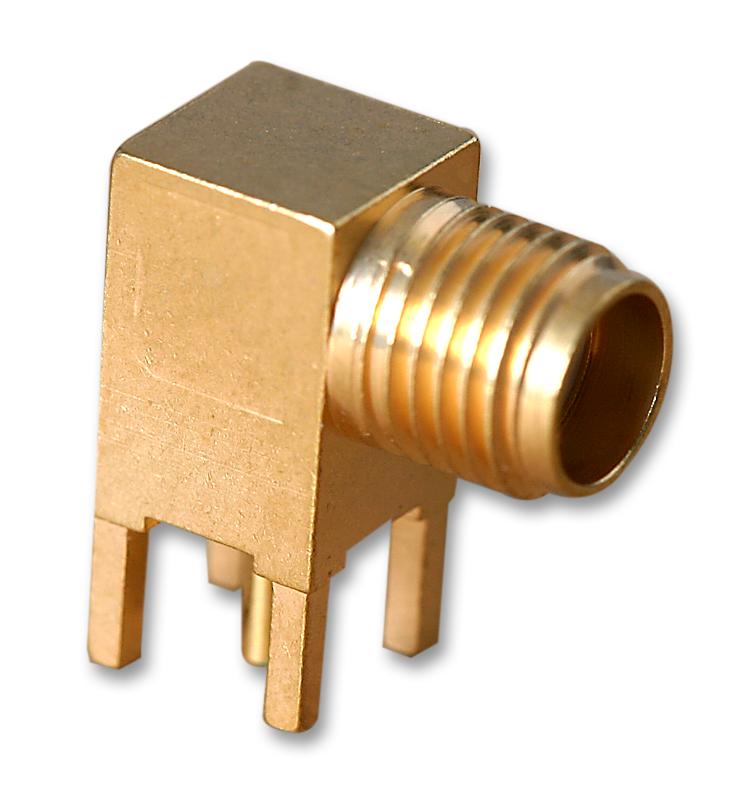

RADIALL - R124680123 - RF / Coaxial Connector, SMA Coaxial, Right Angle Jack, Through Hole Right Angle, 50 ohm
- Connector Type: SMA Coaxial
- Connector Body Style: Right Angle Jack
- Coaxial Termination: Through Hole Right Angle
- Impedance: 50ohm
- Coaxial Cable Types: -
- Contact Material: Beryllium Copper
- Contact Plating: Gold Plated Contacts
- Frequency Max: 18GHz
- Connector Mounting: PCB Mount
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Body Plating: Gold
- Connector Mounting Orientation: PCB
- Insulation Resistance: 5000Mohm
- Material: Brass
- No. of Mating Cycles: 100
- Operating Frequency Max: 12.4GHz
- Operating Temperature Max: 165°C
- Operating Temperature Min: -65°C
- Termination Method: Solder
- Voltage Rating VAC: 250V
- Withstand Voltage: 500V
