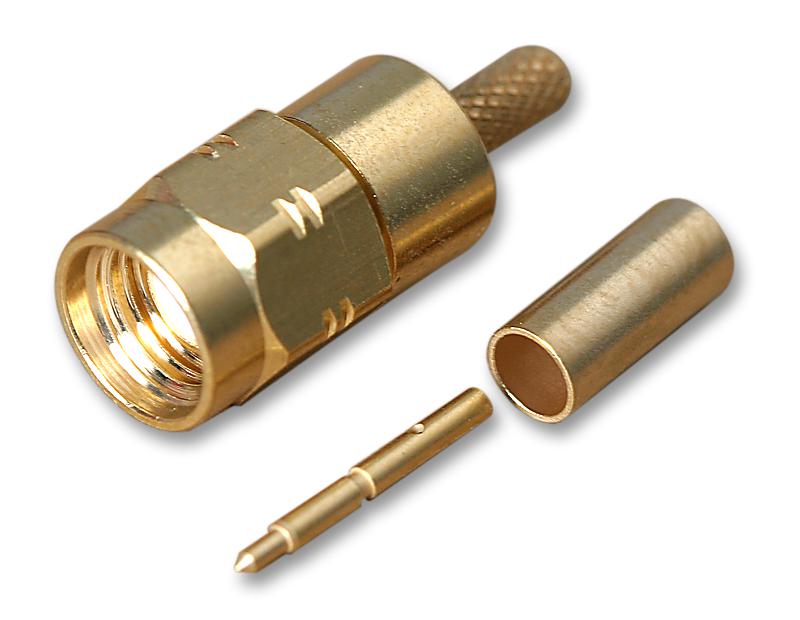

RADIALL - R124071123 - RF / Coaxial Connector, SMA Coaxial, Straight Plug, Crimp, 50 ohm, RG188, RG316, Brass
- Connector Type: SMA Coaxial
- Connector Body Style: Straight Plug
- Coaxial Termination: Crimp
- Impedance: 50ohm
- Coaxial Cable Types: RG188, RG316
- Contact Material: Brass
- Contact Plating: Gold Plated Contacts
- Frequency Max: 12.4GHz
- Connector Mounting: Cable Mount
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Body Plating: Gold
- Coaxial Type: RG174 A/U, RG142, RG188 A/U, RG316/U, URM95, URM109, URM116, KX3B, KX22A
- Connector Mounting Orientation: Cable
- Insulation Resistance: 5000Mohm
- Insulator Material: PTFE (Polytetrafluoroethylene)
- Material: Brass
- No. of Mating Cycles: 100
- Operating Frequency Max: 12.4GHz
- Operating Temperature Max: 165°C
- Operating Temperature Min: -65°C
- Termination Method: Crimp
- Voltage Rating VAC: 250V
- Withstand Voltage: 500V
